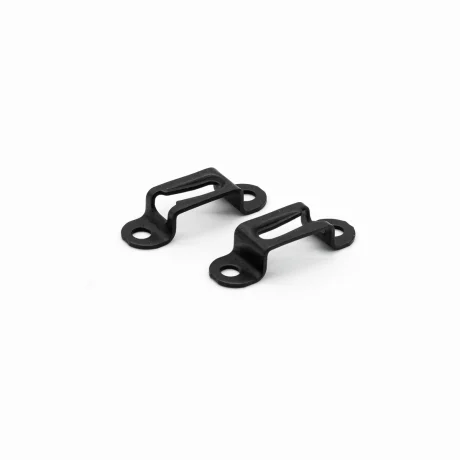

Mod‑eez 5032 Non‑Locking Clip for 3/4″+ Stock

The Mod-eez 5032 Single Clip is the non-locking version of the 5030 Series for 3/4 inch and thicker stock. Made of high-strength spring steel, it works with a Mod-eez Shoulder Screw to create a concealed, self-tightening connection that can be repeatedly assembled and disassembled without damage.

This makes the 5032 ideal for knock-down furniture, modular builds, and shopfitting applications where flexibility and reusability are important. Assembly is quick and simple, with all fasteners hidden from view for a clean, professional look.

Features and Benefits

• Non-locking clip allows easy disassembly and reassembly

• Concealed connector for seamless appearance

• Fast slide-in installation reduces labor time

• Self-tightening spring ramp prevents loosening in use

• Durable spring steel design ensures long service life

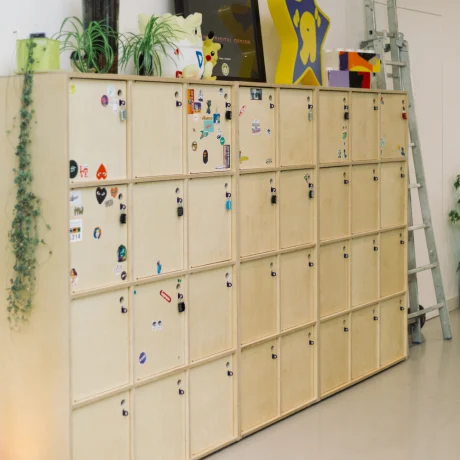

• Knock-down and modular furniture

• Case goods and cabinetry

• Reusable shopfitting and display panels

• Interior millwork requiring flexible reassembly

• Series and type: 5032 Single Clip, non-locking

• Material: Spring steel

• Coating: None

• Connector type: Single non-locking clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, fully demountable joint

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

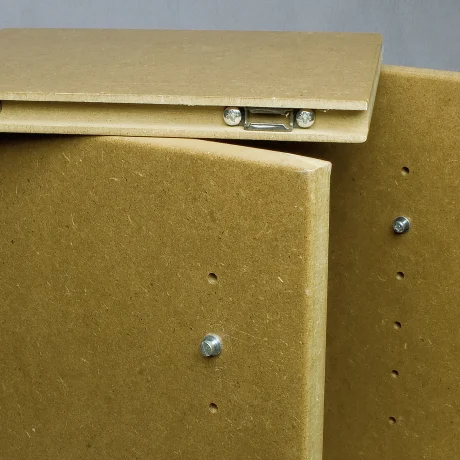

Steps

1. Route the pocket for the clip according to the Mod-eez technical chart.

2. Pre-drill 5/32 inch (4 mm) holes, 32 mm on center, using the K617 Drilling and Depth Jig to ensure accuracy.

3. Mount the clip with PH screws Ø 4.5 mm (length as required).

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp; disassembly is possible by reversing the process.

Tips

• Non-locking clips are ideal when joints need to be taken apart frequently.

• Longer PH screws (5 × 60 mm) can boost strength for heavy-duty applications.

• Can also be welded to 16 ga. steel when required.
