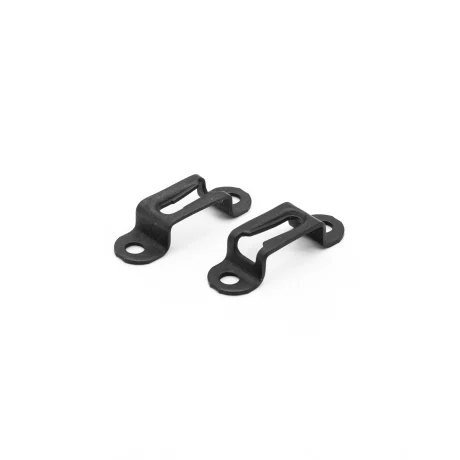

Mod‑eez 5032A Semi‑Locking Clip for 3/4″+ Stock

The Mod-eez 5032A Single Clip is the semi-locking version of the 5030 Series for 3/4 inch and thicker stock. Built from spring steel, this connector offers greater holding security than non-locking clips while still allowing controlled disassembly when needed.

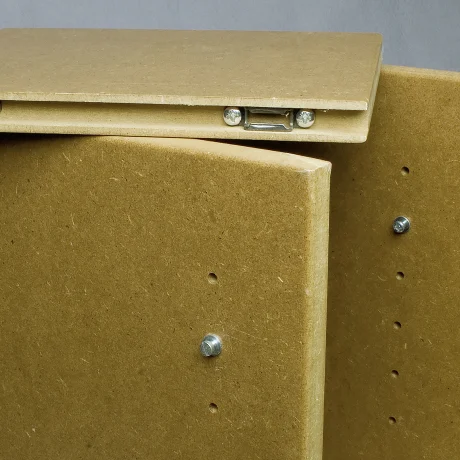

By pairing with a Mod-eez Shoulder Screw, the 5032A creates a concealed, self-tightening connection that resists loosening in use but can be taken apart with more effort. This makes it the ideal choice for projects requiring added stability without committing to a fully permanent joint.

Features and Benefits

• Semi-locking design for a more secure connection

• Concealed installation for a clean finish

• Strong and durable spring steel build

• Self-tightening ramp ensures long-term stability

• Demountable with effort, allowing serviceability

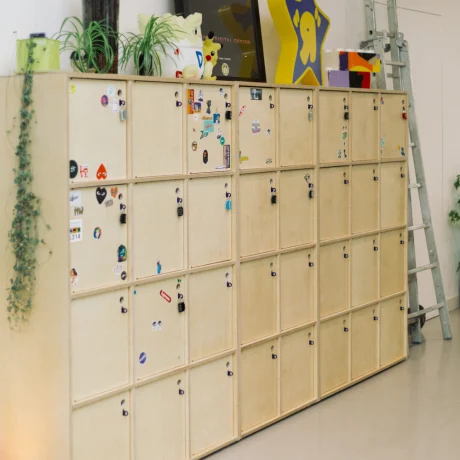

• Semi-permanent furniture joints

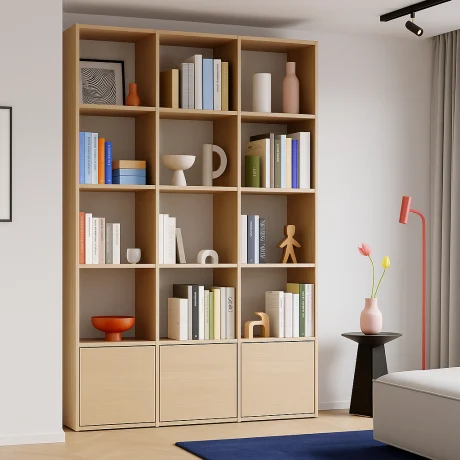

• Case goods and cabinetry

• Shopfitting and millwork

• Installations needing stronger retention than non-locking joints

• Series and type: 5032A Single Clip, semi-locking

• Material: Spring steel

• Coating: None

• Connector type: Single semi-locking clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, semi-locking for extra hold, demountable with effort

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route the pocket for the clip according to the Mod-eez technical chart.

2. Use the K617 Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes, 32 mm on center, and check pocket depth.

3. Mount the clip with PH screws Ø 4.5 mm.

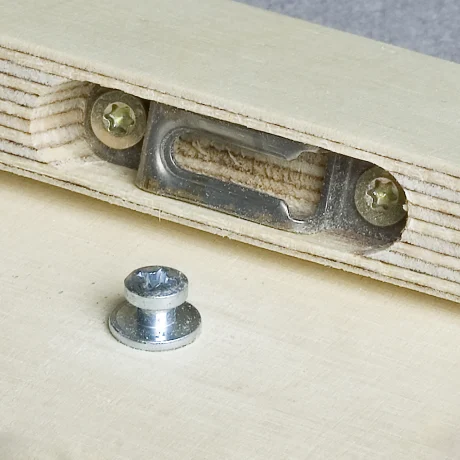

4. Pre-drill and install the Shoulder Screw in the opposing panel.

5. Engage the Shoulder Screw head into the clip ramp; clip holds firmly in place but allows controlled disassembly.

Tips

• Semi-locking clips are best for joints that need to stay tight but not be truly permanent.

• Longer PH screws (5 × 60 mm) can provide added holding strength.

• As with all Mod-eez clips, they can be welded to 16 ga. steel if required.
