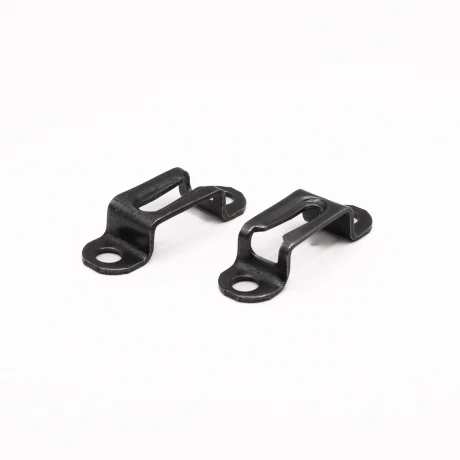

Mod‑eez 5032C Non‑Locking Clip (Special) for 3/4″+ Stock

The Mod-eez 5032C Single Clip is a special non-locking variation of the 5030 Series, designed for 3/4 inch and thicker stock. Like the standard non-locking 5032, it allows joints to be easily assembled and disassembled multiple times. The “C” special version provides slight geometric adjustments that improve fit for certain applications where alignment and tolerance are more demanding.

Made of spring steel, the 5032C pairs with a Mod-eez Shoulder Screw to create a concealed, self-tightening joint that assembles in seconds and remains hidden within the panel. This makes it a flexible connector for case goods, furniture, and shopfitting where quick reassembly and modularity are priorities.

Features and Benefits

• Special non-locking design for repeatable assembly/disassembly

• Concealed connector leaves no visible hardware

• Spring steel construction ensures strength and flexibility

• Fast installation reduces labor and production time

• Maintains clean, professional appearance in finished work

• Knock-down and modular furniture

• Case goods and cabinetry

• Shopfitting and display panels

• Projects needing frequent reconfiguration

• Series and type: 5032C Single Clip, non-locking special

• Material: Spring steel

• Coating: None

• Connector type: Single non-locking special clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, special-fit non-locking joint, fully demountable

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route the pocket for the clip according to the Mod-eez technical chart.

2. Using the K617 Drilling and Depth Jig, pre-drill 5/32 inch (4 mm) holes, 32 mm on center.

3. Mount the clip with PH screws Ø 4.5 mm (length as required).

4. Pre-drill and install the Shoulder Screw in the mating panel.

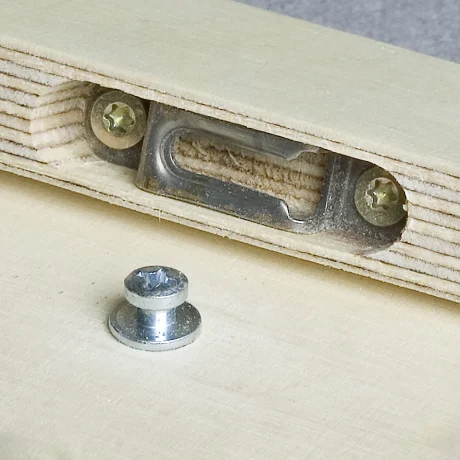

5. Slide the Shoulder Screw head into the clip ramp to assemble.

Tips

• The “Special” design offers slightly refined tolerances for more precise fits.

• Best for modular systems requiring repeated assembly/disassembly.

• For increased holding strength, use longer PH screws (5 × 60 mm).
