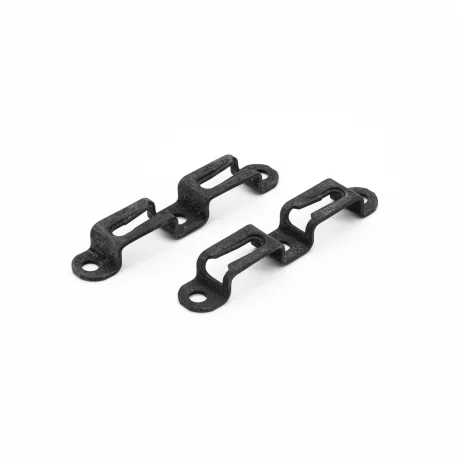

Mod‑eez 5035 Double Semi‑Locking & Non‑Locking Clip for 3/4″+ Stock

The Mod-eez 5035 Double Clip combines one semi-locking clip and one non-locking clip, giving you the best of both worlds. The semi-locking side provides higher resistance to accidental disassembly, while the non-locking side ensures flexibility when controlled takedown is required.

Crafted from spring steel, the 5035 is a concealed and durable connector for case goods, cabinetry, and furniture. With its double-clip design, it makes two points of contact in a single connector, saving time while delivering anti-rotation performance when paired with Shoulder Screws.

Features and Benefits

• Hybrid connector: one semi-locking clip + one non-locking clip

• Semi-locking side resists unintentional disassembly

• Non-locking side allows controlled removal and reassembly

• Concealed design — no visible fasteners on the finished product

• Durable spring steel ramps ensure long-lasting reliability

• Two points of contact reduce installation time

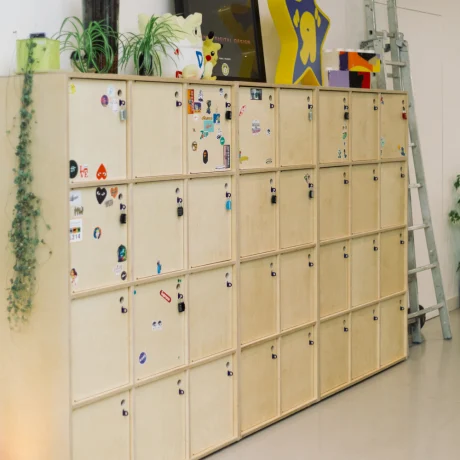

• Cabinetry and case goods

• Shopfitting systems

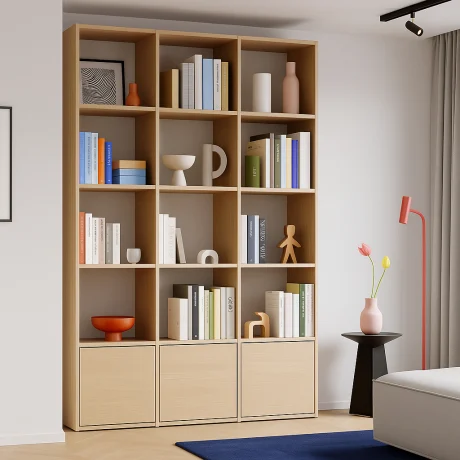

• Furniture and interior panels

• Assemblies requiring partial reusability with added security

• Variation: 5035 Double Semi + Non-Locking Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip, semi-locking + non-locking

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Stronger hold than non-locking, but still reassemblable

• Suitable Materials: Wood, wood-based panels, composites, plastics, steel, aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip according to the technical chart.

2. Use the Mod-eez Drilling and Depth Jig to pre-drill 5/32″ (4 mm) holes, 32 mm on center.

3. Mount the clip with PH-screws Ø 4.5 mm.

4. Pre-drill and install Shoulder Screws in the mating workpiece.

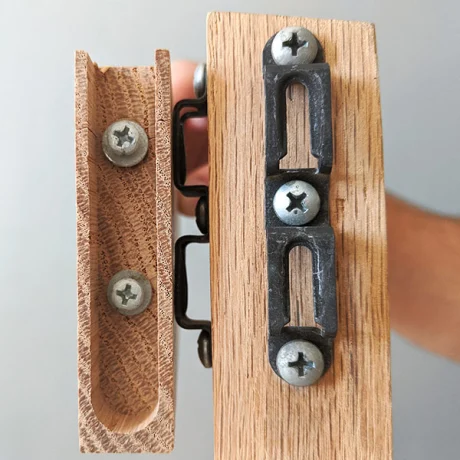

5. Slide the Shoulder Screw heads into the clip ramps and tap gently with a rubber mallet.

Tips

• Semi-locking side adds holding power where disassembly is less frequent.

• Non-locking side ensures flexibility in applications where partial access is needed.

• Pockets are usually routed in the edge but can be surface-mounted when required.

• Longer PH-screws (5×60 mm) increase connector strength.
