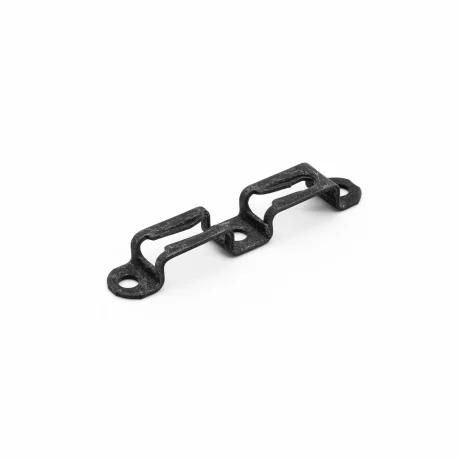

Mod‑eez 5039 Double Pass‑Thru & Non‑Locking Clip for 3/4″+ Stock

The Mod-eez 5039 Double Clip combines one pass-thru clip and one non-locking clip, making it ideal for applications that require deep anchoring into the adjoining material while still allowing controlled disassembly. The pass-thru clip design lets screws extend through the connector into the material, boosting holding power.

Made of spring steel, the 5039 provides a concealed, self-tightening connection that is both strong and versatile. With two points of contact in a single connector, it reduces labor time and ensures anti-rotation performance when paired with Shoulder Screws.

Features and Benefits

• Pass-thru clip allows screws to anchor deeper into the adjoining material

• Non-locking clip enables controlled disassembly and reassembly

• Concealed, self-tightening connection — no visible fasteners

• Two points of contact in one connector for efficient installation

• Built from spring steel for strength and durability

• Suitable for wood, composites, plastics, and even steel or aluminum

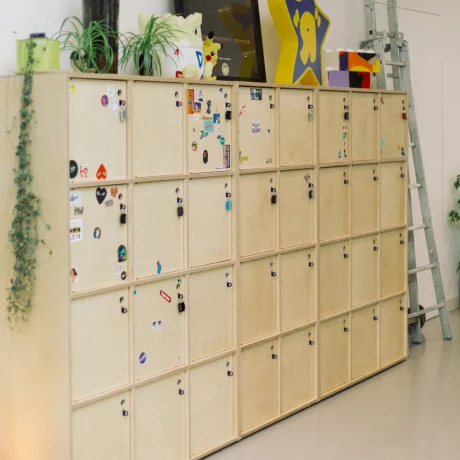

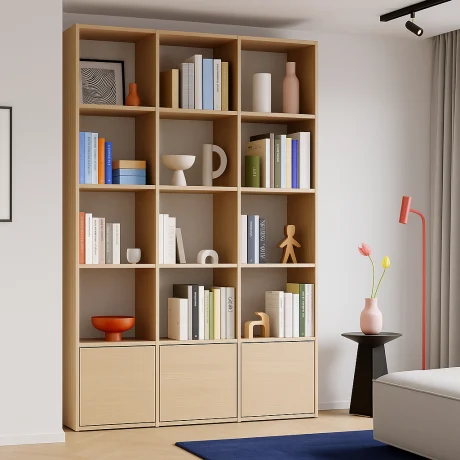

• Furniture and cabinetry

• Case goods and shopfitting

• Interior design joinery

• Projects needing both deep anchoring and removable assembly

• Variation: 5039 Double Pass-Thru + Non-Locking Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip with pass-thru + non-locking sides

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Strong anchoring with pass-thru + flexibility with non-locking

• Suitable Materials: Solid wood, wood-based panels, composites, steel, aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip according to the technical chart.

2. Use the Mod-eez Drilling and Depth Jig to pre-drill 5/32″ (4 mm) holes, 32 mm on center.

3. Mount the clip with PH-screws Ø 4.5 mm (length as required).

4. Pre-drill and install Shoulder Screws in the mating workpiece.

5. Assemble by sliding the Shoulder Screw heads into the clip ramps; tap with a rubber mallet if necessary.

Tips

• Use the pass-thru clip side when longer screws and stronger anchoring are needed.

• The non-locking side allows for repeat assembly and disassembly.

• Pockets are generally routed into edges but can be face-mounted.

• Clips can also be welded to ~16 ga. steel for added versatility.
