Mod‑eez 5039A Double Pass‑Thru & Semi‑Locking Clip for 3/4″+ Stock

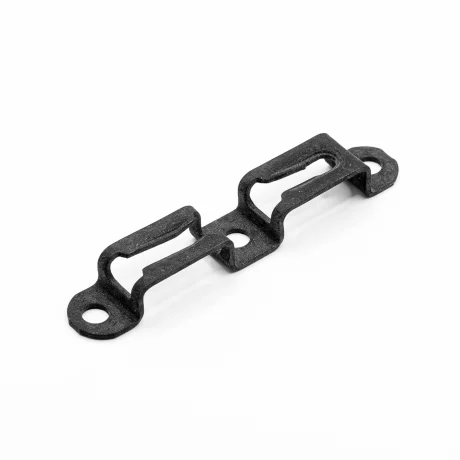

The Mod-eez 5039A Double Clip combines one pass-thru clip and one semi-locking clip, delivering both deep anchoring strength and enhanced holding resistance. The pass-thru clip allows screws to extend into adjoining materials for greater load capacity, while the semi-locking clip adds extra security by making disassembly more resistant than non-locking versions.

Constructed from spring steel, the 5039A is a concealed, self-tightening connector designed for cabinetry, case goods, and furniture where durability and strength are essential. The dual-clip system forms two points of contact in one connector, reducing installation time and providing anti-rotation performance when paired with Shoulder Screws.

Features and Benefits

• Pass-thru clip provides deeper anchoring into adjoining materials

• Semi-locking clip increases resistance to accidental disassembly

• Concealed, self-tightening design ensures a clean look

• Durable spring steel ramps for long-lasting performance

• Two points of contact per connector reduce labor and speed up production

• Ideal for heavy-duty applications requiring both strength and partial reusability

• Case goods and cabinetry

• Furniture manufacturing

• Shopfitting and architectural joinery

• Interior installations requiring stronger anchoring with partial disassembly

• Variation: 5039A Double Pass-Thru + Semi-Locking Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip with pass-thru + semi-locking sides

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Combines deeper anchoring strength with increased holding security

• Suitable Materials: Solid wood, wood-based panels, composites, plastics, steel, aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip as per the technical chart.

2. Pre-drill 5/32″ (4 mm) holes, 32 mm on center, using the Mod-eez Drilling and Depth Jig.

3. Mount the clip with PH-screws Ø 4.5 mm.

4. Install Shoulder Screws into the mating workpiece.

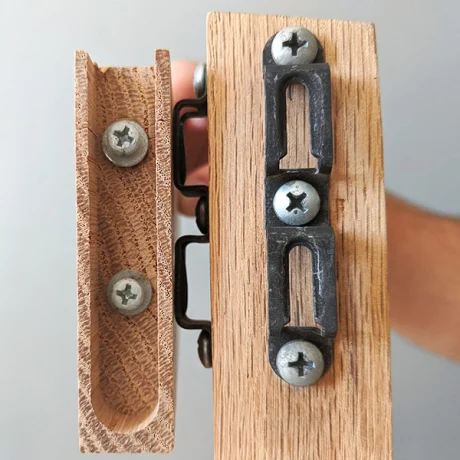

5. Assemble by sliding the Shoulder Screw heads into the clip ramps, securing with a rubber mallet.

Tips

• Pass-thru clip provides added strength with longer screws.

• Semi-locking side is more secure than non-locking, but still demountable with effort.

• Clips can be welded to ~16 ga. steel where required.

• Pockets can be edge-routed or face-mounted, depending on design.
