Mod‑eez 5060 Severe Semi‑Locking Clip for 3/4″+ Stock

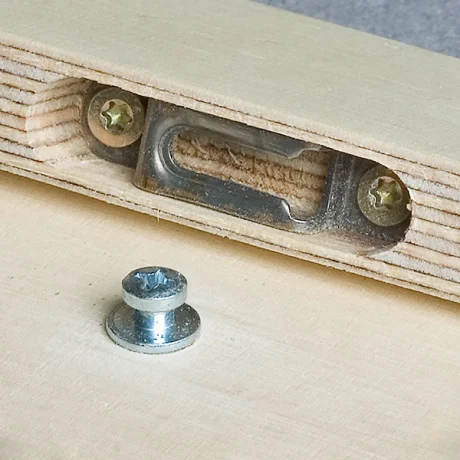

The Mod-eez 5060 Single Clip is the severe semi-locking version of the 5060 Series for 3/4 inch and thicker stock. Like other Mod-eez connectors, it combines a spring steel ramp clip with a Shoulder Screw to form a concealed, self-tightening joint.

The severe semi-locking variation is designed with an extra-strong retention force. It is more secure than standard semi-locking clips, yet it is not fully permanent like the locking type. This makes it an excellent choice for applications where joints must stay very secure but still allow disassembly when required.

Features and Benefits

• Severe semi-locking geometry provides maximum retention without being permanent

• Concealed fastener system maintains a clean, hardware-free appearance

• Self-tightening ramps resist loosening over time

• Durable spring steel construction ensures long service life

• Fast assembly reduces labor and installation costs

• Heavy-duty case goods and cabinetry

• Furniture requiring extra stability with limited disassembly

• Shopfitting and display panels

• Architectural millwork

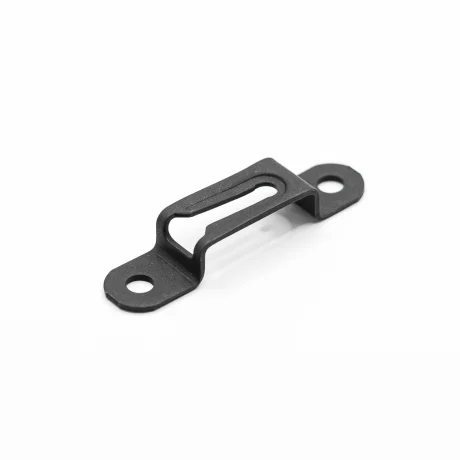

• Series and type: 5060 Single Clip, severe semi-locking

• Material: Spring steel

• Coating: None

• Connector type: Single clip with severe semi-locking geometry

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, high-retention semi-locking joint

• Recommended accessories:

  • K618 Drilling and Depth Jig (compatible with 5060 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route the pocket for the Mod-eez Clip according to the technical chart.

2. Use the K618 Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes, 32 mm on center, and confirm correct pocket depth.

3. Mount the clip with PH screws Ø 4.5 mm (length as required).

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp until it locks securely in place.

Tips

• Severe semi-locking clips are ideal for joints that need to remain tight but still allow occasional disassembly

• For maximum holding strength, use longer PH screws (5 × 60 mm)

• Clips can be welded to 16 ga. steel using wire welding if required
