Mod‑eez 5062 Semi‑Locking Clip for 3/4″+ Stock

The Mod-eez 5062 Single Clip is the semi-locking version of the 5060 Series for 3/4 inch and thicker stock. It combines a spring steel ramp clip with a Shoulder Screw to create a concealed, self-tightening joint that is more secure than non-locking clips, while still allowing disassembly when needed.

The semi-locking geometry provides stronger retention compared to pass-thru or non-locking versions, making it ideal for applications that require added stability but do not need a fully permanent connection.

Features and Benefits

• Semi-locking design for stronger, more secure joints

• Concealed connector for a clean finish with no visible hardware

• Self-tightening spring ramps prevent loosening over time

• Durable spring steel ensures long-term performance

• Assembly is quick and efficient, reducing labor and production costs

• Semi-permanent furniture connections

• Case goods and cabinetry

• Shopfitting and display panels

• Architectural millwork requiring added strength

• Series and type: 5062 Single Clip, semi-locking

• Material: Spring steel

• Coating: None

• Connector type: Single semi-locking clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, semi-locking joint with controlled disassembly

• Recommended accessories:

  • K618 Drilling and Depth Jig (compatible with 5060 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route the pocket for the Mod-eez Clip according to the technical chart.

2. Use the K618 Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes, 32 mm on center, verifying pocket depth.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

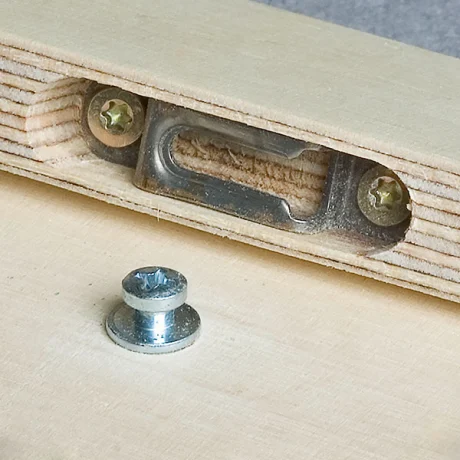

5. Engage the Shoulder Screw head into the clip ramp until the joint is fully seated.

Tips

• Semi-locking clips provide greater holding power than non-locking but still allow controlled disassembly

• Use longer PH screws (5 × 60 mm) to increase strength for heavier loads

• Can be welded to 16 ga. steel using wire welding for specialty installations
