Mod‑eez 5063 Non‑Locking Clip for 3/4″+ Stock

The Mod-eez 5063 Single Clip is the non-locking version of the 5060 Series for 3/4 inch and thicker stock. Built from durable spring steel, it pairs with a Mod-eez Shoulder Screw to create a concealed, self-tightening joint that assembles in seconds.

The non-locking design allows the connection to be easily assembled and disassembled multiple times without damage, making it ideal for modular systems, knock-down furniture, and shopfitting where flexibility and reusability are key.

Features and Benefits

• Non-locking design allows quick assembly and disassembly

• Concealed fastener system creates a clean finish with no visible hardware

• Self-tightening ramps prevent loosening during use

• Strong and flexible spring steel construction

• Reduces labor and assembly costs with fast installation

• Knock-down and modular furniture

• Case goods and cabinetry

• Shopfitting and reusable display systems

• Interior and architectural millwork requiring flexibility

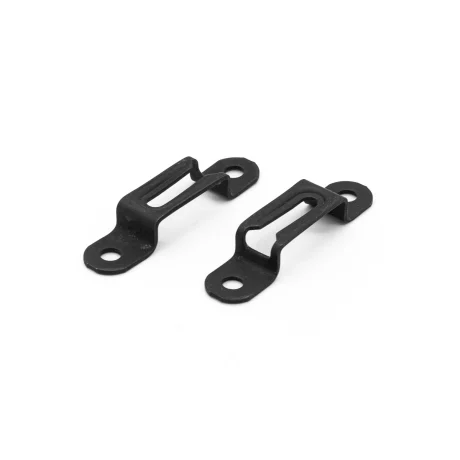

• Series and type: 5063 Single Clip, non-locking

• Material: Spring steel

• Coating: None

• Connector type: Single non-locking clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, demountable non-locking joint

• Recommended accessories:

  • K618 Drilling and Depth Jig (compatible with 5060 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

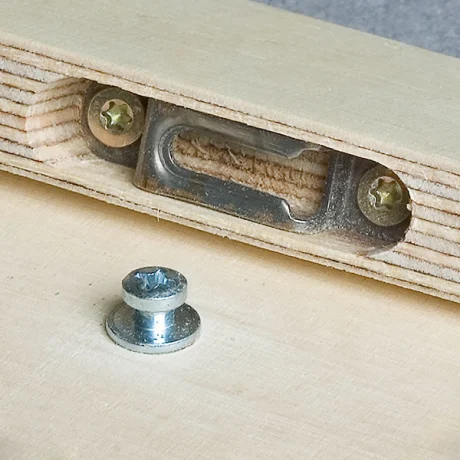

1. Route the pocket for the Mod-eez Clip according to the technical chart.

2. Use the K618 Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes, 32 mm on center, and confirm depth.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp. The joint can be disassembled and reassembled repeatedly.

Tips

• Best choice for furniture and systems requiring frequent disassembly

• For added holding power, use longer PH screws (5 × 60 mm)

• Clips can also be welded to 16 ga. steel using wire welding if needed
