Mod-eez Single Clips – 1760 for 3/4″+ Stock

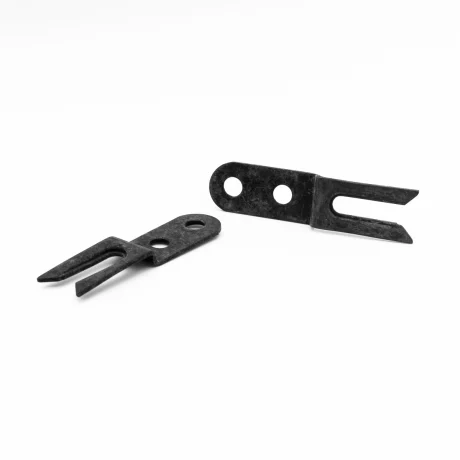

The Mod-eez 1760 Single Clip is a concealed, self-tightening connector designed for RTA furniture, cabinetry, and case goods. Made of durable spring steel, it provides a strong and flexible joint when paired with a Mod-eez Shoulder Screw. The clip installs flush into a routed pocket, and when assembled, all fasteners are hidden from view.

This listing includes the clip only. For convenience, Mod-eez Sets are also available, which include the clip, Shoulder Screw, and mounting screws.

Available in multiple clip types including pass-thru, non-locking, semi-locking, and locking, the Mod-eez 1760 offers the right balance of strength and flexibility for a wide range of applications.

Features and Benefits

• Fast and efficient assembly with panels sliding and locking together in seconds

• Concealed connection that leaves no visible fasteners

• Four clip types available: pass-thru, non-locking, semi-locking, and locking

• Self-tightening spring steel ramps provide strong resistance to torsional pull-out

• Durable spring steel design built for long-term reliability

• Compatible with 3/4 inch (19 mm) and thicker materials

• Works with wood, composites, plastics, steel, and aluminum

• Case goods and cabinetry

• RTA furniture

• Chairs and tables

• Shopfitting and interior design

• Modular panels and furniture systems

• Variation: Mod-eez 1760 Single Clip (clip only)

• Material: Spring steel

• Coating: None

• Connector Type: Single clip used with Shoulder Screws

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Concealed, self-tightening, demountable connector

• Suitable Materials: Solid wood, wood-based panels, plastics, steel, aluminum

• Accessories: Drill and Depth Jig (CCD/4030S), Mod-eez Shoulder Head Screws

Steps

1. Route the pocket for the Mod-eez Single Clip using a spindle moulder, plunge router, or CNC.

2. Use the Mod-eez Drilling and Depth Jig (CCD/4030S) to pre-drill 5/32 inch (4 mm) holes, 32 mm on center, ensuring accurate depth and alignment.

3. Mount the clip with PH- or CS-screws Ø 4.5 mm (length as required).

4. Install the Shoulder Screw into the mating panel.

5. Assemble by sliding the Shoulder Screw head into the clip ramp until it locks securely.

Tips

• Select the clip type (pass-thru, non-locking, semi-locking, or locking) depending on whether disassembly is needed.

• For added strength, use longer PH-screws (around 5 × 60 mm).

• Pockets are typically routed into panel edges but can also be face-mounted when needed.

• Clips can be welded to approximately 16 gauge steel using wire welding.
