Anti-Rotation Clips 5075 + 5076

The Mod-eez 5075 / 5076 Anti-Rotation Clips are designed for 3/4″ (19mm) and thicker stock. This male and female clip pair interlocks to create a concealed joint that prevents panel rotation in narrow applications such as table aprons, chair rails, and frame assemblies as small as 2″ (50mm) tall.

The Non-Locking configuration provides controlled engagement where the male clip remains seated in the female clip ramp during use but can still be disassembled when needed. This offers more resistance to accidental separation than the Pass-Thru version while maintaining the ability to take the joint apart.

Features and Benefits

• Non-Locking design allows disassembly while resisting accidental separation
• Prevents joint rotation in panels as narrow as 2″ (50mm)
• Concealed connection with no visible hardware
• Self-tightening ramps maintain consistent clamping pressure
• Spring steel construction with phosphate coating
• Load-bearing immediately upon assembly
• Suitable for repeated assembly cycles

• Case goods and cabinetry
• Table aprons and frames
• Chair rails and stretchers
• Shopfitting and retail fixtures
• Interior millwork
• Knock-down and RTA furniture
• Furniture requiring occasional disassembly

Series: 5070
Clip Dimensions: 42 × 12.7 mm
Pocket Depth: 12 mm (±0.2 mm)
Pocket Length: 63.5 mm min
Pocket Width: 32 mm
Screw Holes: 2× Ø6.4 mm, 32 mm spacing
Min. Material Thickness: 19 mm (3/4″)
Material: Spring steel, phosphate coated
Demountable: Yes

What’s Included:

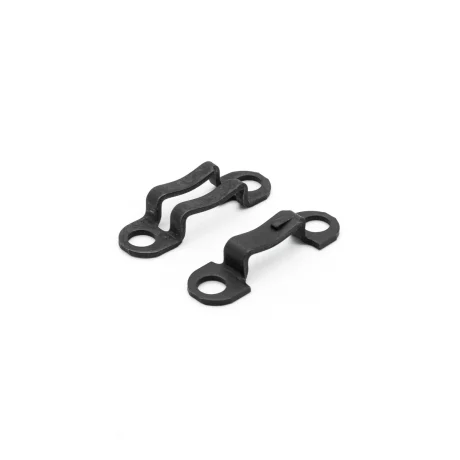

• 1× Male Anti-Rotation Clip (5075)
• 1× Female Non-Locking Anti-Rotation Clip (5076)

Mounting screws sold separately.

1. Route the female clip pocket to 5070 Series specifications: 12 mm depth, 32 mm width, 63.5 mm min length.
2. Pre-drill screw holes 32 mm on center. Use 2.4 mm diameter for softwood or 2.8 mm for hardwood.
3. Mount the female clip (5076) in the routed pocket using #8 flat head wood screws or 4.5 mm wood screws.
4. Mount the male clip (5075) on the surface of the opposing workpiece using the same screw specification.
5. Assemble by sliding the two panels together until the clips interlock. The joint is load-bearing immediately upon engagement.
