Locking Anti-Rotation Clips 5075 + 5074

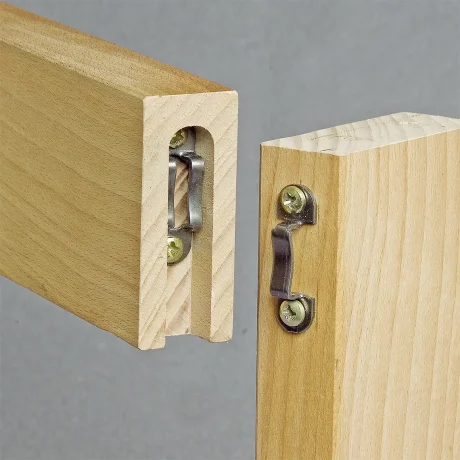

The Mod-eez 5075 / 5074 Locking Anti-Rotation Clips are designed for 3/4″ (19mm) and thicker stock. This male and female clip pair interlocks to create a concealed joint that prevents panel rotation in narrow applications such as table aprons, chair rails, and frame assemblies as small as 2″ (50mm) tall.

The Locking configuration creates a permanent connection. Once the clips engage, they cannot be separated without damaging the clips. This makes the 5075 / 5074 appropriate for permanent installations where disassembly is not required or desired.

Note: The locking connection cannot be disassembled without damage. Verify correct positioning before final assembly.

Features and Benefits

• Permanent locking connection
• Tamper-resistant for commercial and public installations
• Prevents joint rotation in panels as narrow as 2″ (50mm)
• Concealed connection with no visible hardware
• Self-tightening ramps maintain consistent clamping pressure
• Spring steel construction with phosphate coating
• Load-bearing immediately upon assembly

• Permanent furniture joints
• Table aprons and chairs
• Commercial and contract furniture
• Shopfitting and architectural millwork
• Public seating and fixtures
• Applications where tamper resistance is required

Series: 5070
Clip Dimensions: 42 × 12.7 mm
Pocket Depth: 12 mm (±0.2 mm)
Pocket Length: 63.5 mm min
Pocket Width: 32 mm
Screw Holes: 2× Ø6.4 mm, 32 mm spacing
Min. Material Thickness: 19 mm (3/4″)
Material: Spring steel, phosphate coated
Demountable: No (permanent connection)

What’s Included:

• 1× Male Anti-Rotation Clip (5075)
• 1× Female Locking Anti-Rotation Clip (5074)

Mounting screws sold separately.

1. Route the female clip pocket to 5070 Series specifications: 12 mm depth, 32 mm width, 63.5 mm min length.
2. Pre-drill screw holes 32 mm on center. Use 2.4 mm diameter for softwood or 2.8 mm for hardwood.
3. Mount the female locking clip (5074) in the routed pocket using #8 flat head wood screws or 4.5 mm wood screws.
4. Mount the male clip (5075) on the surface of the opposing workpiece using the same screw specification.
5. Verify alignment and positioning before final assembly. The locking connection is permanent.

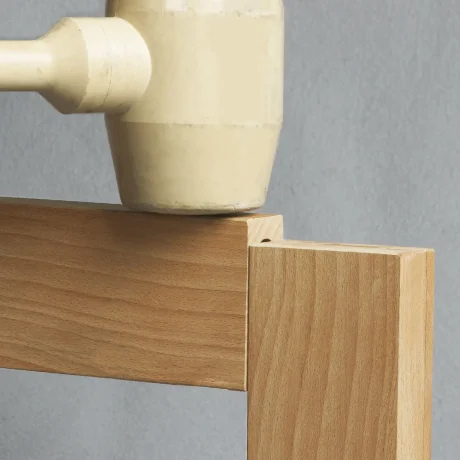

6. Assemble by sliding the two panels together until the clips interlock. The joint is load-bearing immediately upon engagement and cannot be disassembled.
