Mod-eez 4031 Pass-Thru Set – Concealed Connector

The Mod-eez 4031 Pass-Thru Set is designed for secure and concealed assembly of panels in 5/8 inch and thicker stock. Made from high-strength spring steel, this clip works in combination with the included Shoulder Screw to create a durable, self-tightening joint.

Unlike non-locking or semi-locking clips, the pass-thru design allows the Shoulder Screw head to pass completely through the clip, providing flexibility for specific construction and assembly needs. The result is a fast, clean connection with no visible hardware.

Features and Benefits

• Pass-thru clip allows Shoulder Screw head to pass completely through the clip ramp

• Concealed fastener system leaves surfaces hardware-free

• Self-tightening design ensures long-term stability

• Durable spring steel for reliable strength

• Fast installation reduces production time

• Case goods and cabinetry

• Shopfitting and architectural millwork

• Furniture assembly

• RTA and knock-down applications

• Series and type: 4031 Single Clip, Pass-Thru Set

• Material: Spring steel

• Coating: Phosphate finish

• Connector type: Single pass-thru clip with Shoulder Screw

• Mounting: PH screws Ø 4.5 mm (included)

• Pocket dimensions: 42.5 mm long × 11 mm deep × 11 mm wide

• Pilot holes: 2.4 mm (softwood) or 2.8 mm (hardwood) for #8 pan head screws

• Suitable material thickness: 16 mm and up (5/8 inch and up)

• Advantages: Concealed, self-tightening connection with pass-thru flexibility

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 Single Clips)

• What is included (set contents):

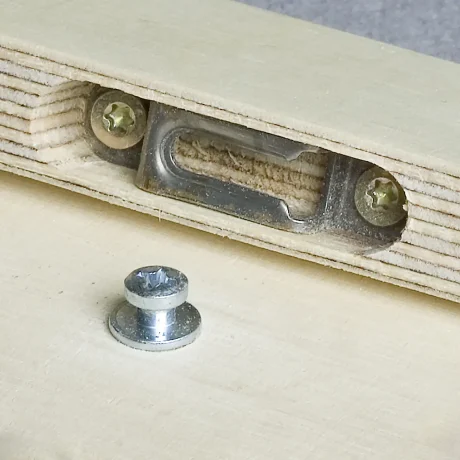

  • 1× Mod-eez Clip 4031 Pass-Thru

  • 2× PH-mounting screws #10 SMT × 1″ (513)

  • 1× Shoulder screw 5 mm × 1/2″ (2055)

Steps

1. Route a pocket measuring approx. 42.5 mm long × 12 mm wide × 11 mm deep in the workpiece.

2. Pre-drill two pilot holes for the mounting screws: 2.4 mm (softwood) or 2.8 mm (hardwood).

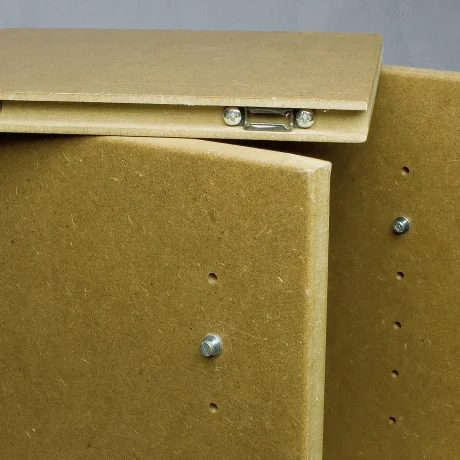

3. Secure the 4031 Pass-Thru Clip with the included PH #10 screws.

4. Pre-drill and install the included 5 mm × 1/2″ Shoulder Screw in the mating panel.

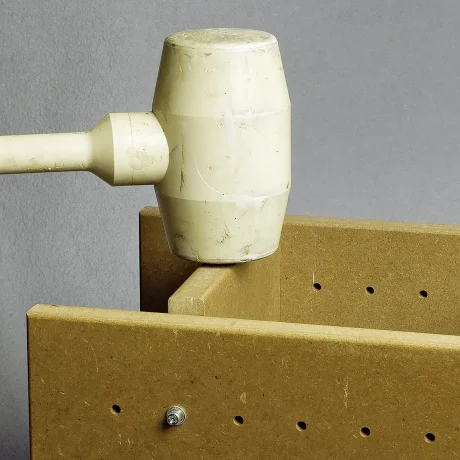

5. Slide the Shoulder Screw head fully into the clip ramp until engaged.

Tips

• For tighter fits, increase pocket depth to 11.2 mm; for easier assembly, reduce to 10.8 mm.

• Use the K617 Drilling and Depth Jig for accurate placement and depth control.

• The pass-thru clip is best used where the Shoulder Screw needs to pass fully through the clip for additional assembly flexibility.
