Mod-eez 4032 Non-Locking Set – Concealed Connector

The Mod-eez 4032 Non-Locking Set is part of the 4030 Series, designed for 5/8 inch and thicker stock. Constructed from durable spring steel, this connector works with the included Shoulder Screw to create a concealed, self-tightening joint.

The non-locking design allows the Shoulder Screw head to disengage from the clip ramp, making it easy to disassemble and reassemble panels without damaging the components. This makes the 4032 ideal for RTA furniture, cabinetry, and other applications where flexibility and reusability are required.

Features and Benefits

• Non-locking design enables easy disassembly and reuse

• Concealed fastener system leaves surfaces clean and hardware-free

• Self-tightening ramps keep joints tight over time

• High-strength spring steel construction ensures durability

• Quick installation lowers labor and production costs

• RTA and knock-down furniture

• Case goods and cabinetry

• Shopfitting and millwork projects

• Fixtures requiring periodic assembly and disassembly

• Series and type: 4032 Single Clip, Non-Locking Set

• Material: Spring steel

• Coating: Phosphate finish

• Connector type: Single non-locking clip with Shoulder Screw

• Mounting: PH screws Ø 4.5 mm (included)

• Pocket dimensions: 42.5 mm long × 12 mm wide × 11 mm deep

• Pilot holes: 2.4 mm (softwood) or 2.8 mm (hardwood) for #8 pan head screws

• Suitable material thickness: 16 mm and up (5/8 inch and up)

• Advantages: Concealed, self-tightening, demountable connection

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 Single Clips)

• What is included (set contents):

  • 1× Mod-eez Clip 4032 Non-Locking

  • 2× PH-mounting screws #10 SMT × 1″ (513)

  • 1× Shoulder screw 5 mm × 1/2″ (2055)

Steps

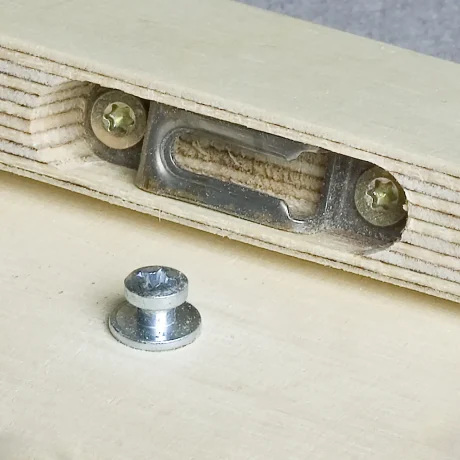

1. Route a pocket measuring approx. 42.5 mm long × 12 mm wide × 11 mm deep in the workpiece.

2. Pre-drill two pilot holes for the included PH mounting screws: 2.4 mm (softwood) or 2.8 mm (hardwood).

3. Secure the 4032 Non-Locking Clip with the included #10 screws.

4. Pre-drill and install the 5 mm × 1/2″ Shoulder Screw in the mating panel.

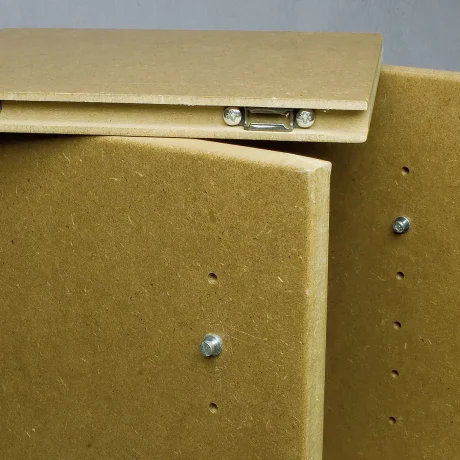

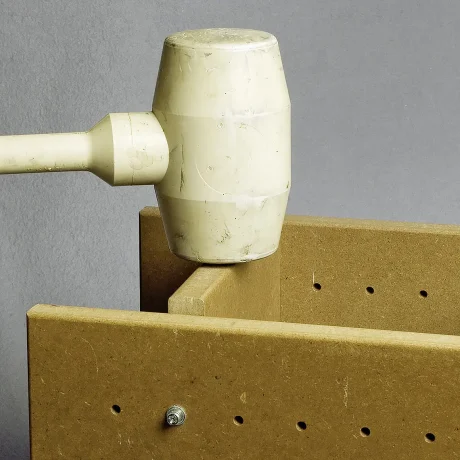

5. Slide the Shoulder Screw head into the clip ramp until engaged. The joint can be disassembled as needed.

Tips

• Use 11.2 mm pocket depth for a tighter hold, or 10.8 mm for easier assembly.

• The K617 Drilling and Depth Jig helps ensure accurate pocket placement and drilling depth.

• Non-locking clips are best for furniture and cabinetry that require repeatable assembly.
