Pass-Thru Anti-Rotation Clips 5071 + 5072

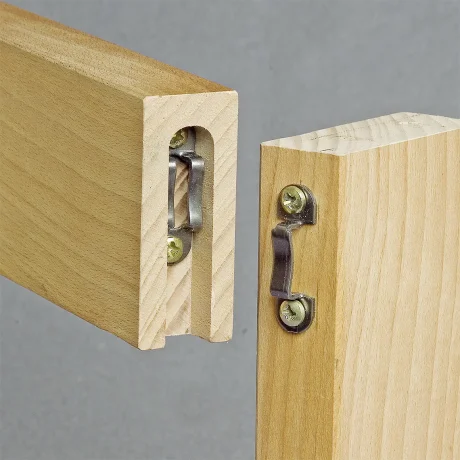

The Mod-eez 5071 / 5072 Pass-Thru Anti-Rotation Clips are designed for 3/4″ (19mm) and thicker stock. This male and female clip pair interlocks to create a concealed joint that prevents panel rotation in narrow applications such as table aprons, chair rails, and frame assemblies as small as 2″ (50mm) tall.

The Pass-Thru configuration allows the male clip to slide completely through the female clip during disassembly, requiring no tools and minimal effort. This makes the 5071 / 5072 well-suited for knock-down furniture, trade show displays, and any application requiring repeated assembly and disassembly.

Features and Benefits

• Male clip passes completely through female clip for tool-free disassembly
• Prevents joint rotation in panels as narrow as 2″ (50mm)
• Concealed connection with no visible hardware
• Self-tightening ramps maintain consistent clamping pressure
• Spring steel construction with phosphate coating
• Load-bearing immediately upon assembly
• Suitable for repeated assembly cycles

• Case goods and cabinetry
• Table aprons and frames
• Chair rails and stretchers
• Shopfitting and retail fixtures
• Architectural millwork
• Knock-down and RTA furniture
• Trade show displays

Series: 5070
Clip Dimensions: 42 × 12.7 mm
Pocket Depth: 12 mm (±0.2 mm)
Pocket Length: 63.5 mm min
Pocket Width: 32 mm
Screw Holes: 2× Ø6.4 mm, 32 mm spacing
Min. Material Thickness: 19 mm (3/4″)
Material: Spring steel, phosphate coated
Demountable: Yes

What’s Included:

• 1× Male Pass-Thru Anti-Rotation Clip (5071)
• 1× Female Pass-Thru Anti-Rotation Clip (5072)

Mounting screws sold separately.

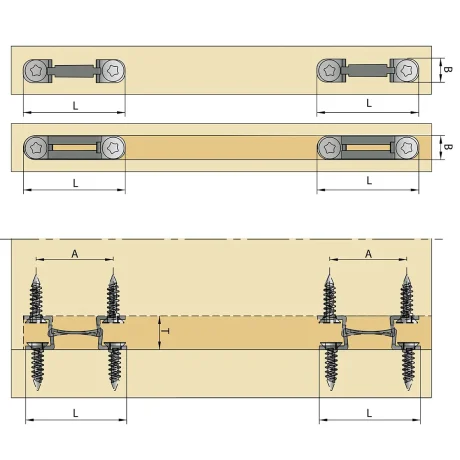

1. Route the female clip pocket to 5070 Series specifications: 12 mm depth, 32 mm width, 63.5 mm min length.
2. Pre-drill screw holes 32 mm on center. Use 2.4 mm diameter for softwood or 2.8 mm for hardwood.
3. Mount the female clip (5072) in the routed pocket using #8 flat head wood screws or 4.5 mm wood screws.
4. Mount the male clip (5071) on the surface of the opposing workpiece using the same screw specification.

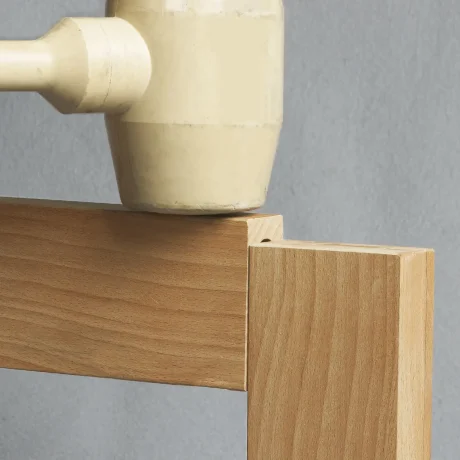

5. Assemble by sliding the two panels together until the clips interlock. The joint is load-bearing immediately upon engagement.
6. To disassemble, slide the panels apart. The Pass-Thru design allows separation without tools.
