Mod-eez 2065 Shoulder Bolt M4 x 12 mm

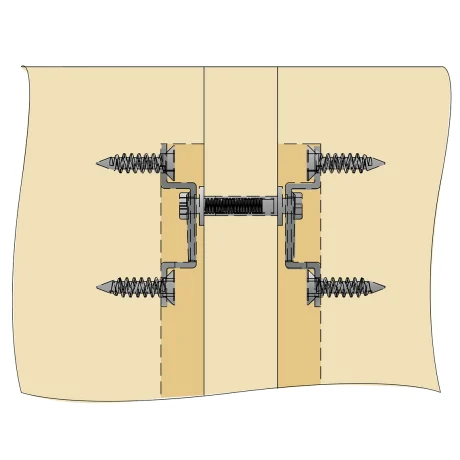

Mod-eez Shoulder Bolts are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder bolt, allowing components to be assembled by sliding the bolt head into position. Once installed, the fastener is fully concealed while providing a strong and precise connection.

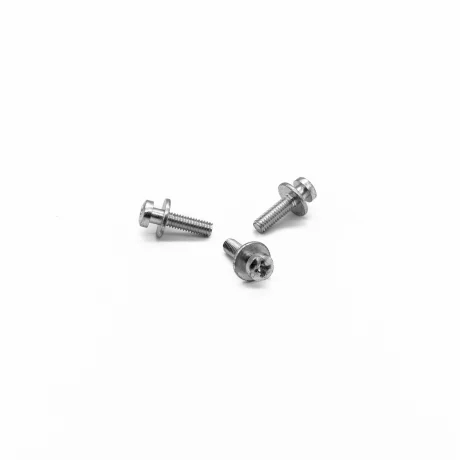

The Mod-eez 2065 Shoulder Bolt features an M4 x 0.7 metric thread with a 12 mm shoulder length. This metric configuration is commonly used in applications requiring precise alignment and compatibility with metric hardware while maintaining a concealed fastening solution.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• Metric M4 x 0.7 shoulder bolt

• 12 mm shoulder length

• Requires a 5 mm pilot hole

• Concealed fastening solution for cabinetry and case goods

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring metric fasteners

• Product code: 2065

• Thread type: M4 x 0.7 ISO metric, class 6G

• Shoulder length: 12 mm

• Pilot hole size: 5 mm

• Drive type: #2 Phillips

• Material: Steel

Install using a 5 mm pre-drilled hole aligned with the Mod-eez clip pocket. Assembly is completed by sliding the shoulder bolt head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
