Mod-eez 2069–2066 Sex Bolt Set for 3/4″ (19 mm) Material

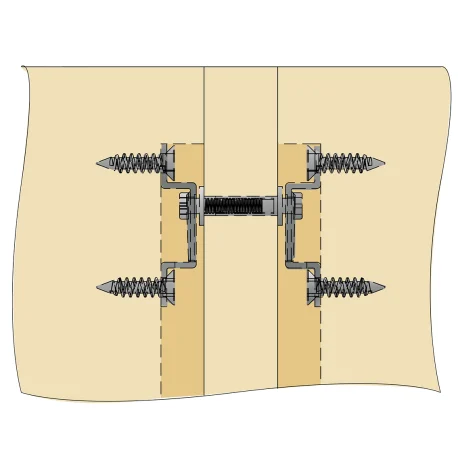

The Mod-eez 2069–2066 Sex Bolt Set is a through-panel fastener designed for 3/4″ (19 mm) divider panels. This set pairs an M4 metric shoulder bolt with a matching sex bolt barrel, allowing Mod-eez clip connections on both sides of a shared middle wall or divider panel at the exact same position.

This is the thicker-material companion to the 2065–2066 set, using the same barrel but with a longer bolt to span the additional panel thickness. At 19 mm, this covers the most common panel thickness in European-style cabinetry.

Features and Benefits

• Allows Mod-eez clip connections on both sides of a 3/4″ (19 mm) divider panel
• Components connect at exactly the same height on both faces
• M4 × 0.7 ISO metric threading for precision fit
• Through-panel installation with concealed result
• Compatible with all Mod-eez Single and Double Clips

• Cabinet middle walls and dividers (3/4″ material)
• Closet partition panels
• European-style cabinetry (19 mm standard)
• Modular furniture systems with shared panels

• Material Thickness: 3/4″ (19 mm)
• Thread: M4 × 0.7 ISO metric

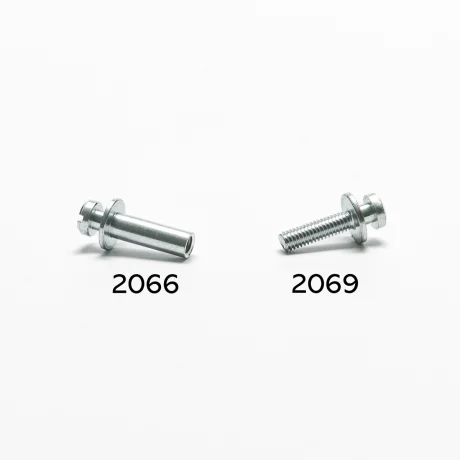

• Set Contents: 1× shoulder bolt (2069), 1× sex bolt barrel (2066)
• Installation: Drill through-hole in divider panel, insert bolt from one side and barrel from the other, thread together
• Compatible With: All Mod-eez Single and Double Clips

Steps

1. Drill a through-hole in the divider panel at the desired connection point.
2. Insert the 2069 shoulder bolt from one side of the panel.
3. Insert the 2066 sex bolt barrel from the opposite side.

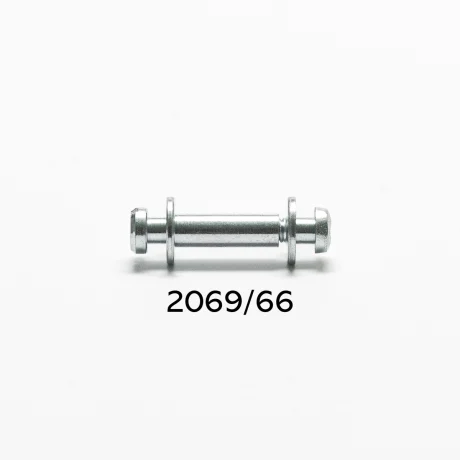

4. Thread the bolt and barrel together until both shoulders sit flush against the panel faces.
5. Install Mod-eez clips in the mating components (shelves, stretchers, etc.).
6. Slide components onto the exposed shoulders from each side.

Tips

• For 5/8″ (16 mm) divider panels, use the Mod-eez 2065–2066 Sex Bolt Set instead.
• Uses the same 2066 barrel as the 2065–2066 set — the longer bolt accommodates the thicker material.
