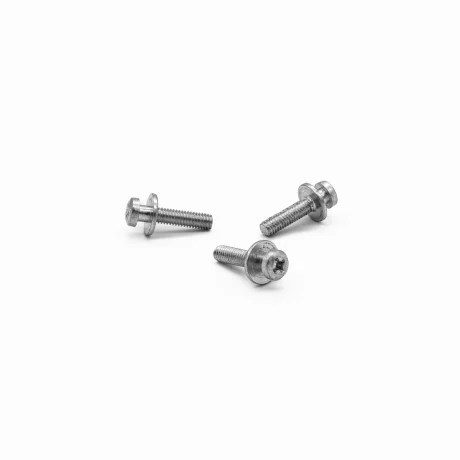

Mod-eez 2069 Shoulder Bolt M4 x 15 mm

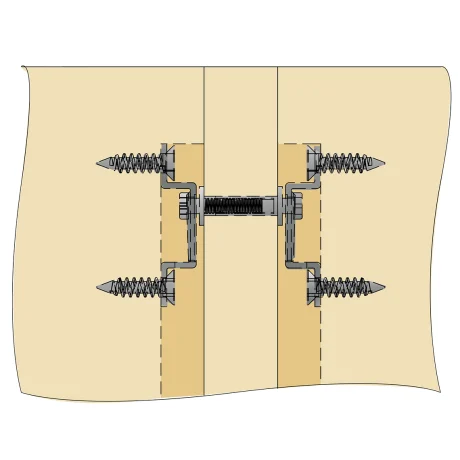

Mod-eez Shoulder Bolts are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder bolt, allowing components to be assembled by sliding the bolt head into position. Once installed, the fastener is fully concealed while providing a strong and precise connection.

The Mod-eez 2069 Shoulder Bolt features an M4 x 0.7 ISO metric thread with a 15 mm shoulder length. This longer metric shoulder provides additional spacing and engagement for applications that require precise alignment while maintaining a clean, concealed fastening solution.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• Metric M4 x 0.7 shoulder bolt

• 15 mm shoulder length

• Concealed fastening solution for cabinetry and case goods

• Precise alignment with hidden installation

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring metric fasteners

• Product code: 2069

• Thread type: M4 x 0.7 ISO metric, class 6G

• Shoulder length: 15 mm

• Drive type: #2 Phillips

• Material: Steel

Install using a properly sized pre-drilled hole aligned with the Mod-eez clip pocket. Assembly is completed by sliding the shoulder bolt head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
