Mod-eez 5045–5566 Sex Bolt Set for 1/2″ Material

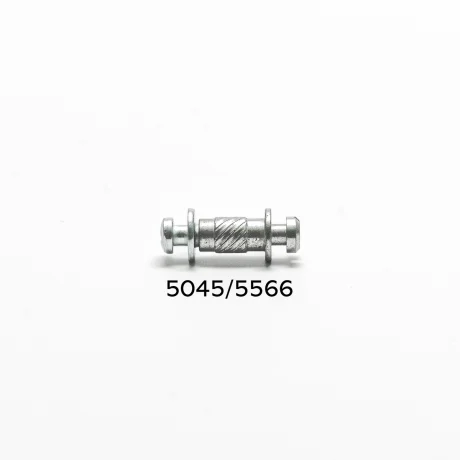

The Mod-eez 5045–5566 Sex Bolt Set is a through-panel fastener designed for 1/2″ divider panels. This set pairs a #10-32 fine-thread shoulder bolt with a matching sex bolt barrel, allowing Mod-eez clip connections on both sides of a shared middle wall or divider panel at the exact same position.

This is the thinnest-material option in the #10-32 sex bolt set family, targeting thin center dividers and partition panels in cabinets and closets where space is at a premium.

Features and Benefits

• Allows Mod-eez clip connections on both sides of a 1/2″ divider panel
• Components connect at exactly the same height on both faces
• #10-32 fine machine thread (32 TPI) for precision fit and vibration resistance
• Through-panel installation with concealed result
• Compatible with all Mod-eez Single and Double Clips

• Thin cabinet center dividers
• Closet partition panels (1/2″ material)
• Space-saving modular furniture systems
• Shopfitting display dividers

• Material Thickness: 1/2″
• Thread: #10-32 (fine machine thread)
• Set Contents: 1× shoulder bolt (5045), 1× sex bolt barrel (5566)
• Installation: Drill through-hole in divider panel, insert bolt from one side and barrel from the other, thread together
• Compatible With: All Mod-eez Single and Double Clips

Steps

1. Drill a through-hole in the divider panel at the desired connection point.
2. Insert the 5045 shoulder bolt from one side of the panel.
3. Insert the 5566 sex bolt barrel from the opposite side.
4. Thread the bolt and barrel together until both shoulders sit flush against the panel faces.
5. Install Mod-eez clips in the mating components.
6. Slide components onto the exposed shoulders from each side.

Tips

• For 5/8″ material, use the Mod-eez 5565–5066 Sex Bolt Set. For 3/4″+, use the 5065–5666 set.
• The #10-32 fine thread provides better vibration resistance than coarse-thread alternatives.
