Mod-eez 5065–5666 Sex Bolt Set for 3/4″+ Material

The Mod-eez 5065–5666 Sex Bolt Set is a through-panel fastener designed for 3/4″ and thicker divider panels. This set pairs a #10-32 fine-thread shoulder bolt with a matching sex bolt barrel, allowing Mod-eez clip connections on both sides of a shared middle wall or divider panel at the exact same position.

This is the heavy-duty option in the #10-32 sex bolt set family — the longest bolt with the deepest engagement, for the thickest material the #10-32 thread series supports.

Features and Benefits

• Allows Mod-eez clip connections on both sides of a 3/4″+ divider panel
• Components connect at exactly the same height on both faces
• #10-32 fine machine thread (32 TPI) for precision fit and vibration resistance
• Through-panel installation with concealed result
• Compatible with all Mod-eez Single and Double Clips

• Heavy-duty cabinet middle walls and dividers
• Commercial casework partition panels
• Thick solid wood dividers
• High-end residential and institutional cabinetry

• Material Thickness: 3/4″+
• Thread: #10-32 (fine machine thread)

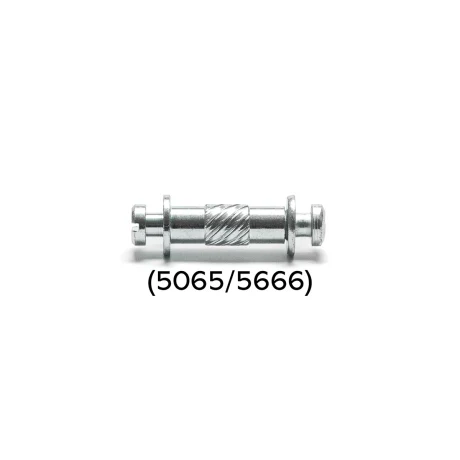

• Set Contents: 1× shoulder bolt (5065), 1× sex bolt barrel (5666)
• Installation: Drill through-hole in divider panel, insert bolt from one side and barrel from the other, thread together
• Compatible With: All Mod-eez Single and Double Clips

Steps

1. Drill a through-hole in the divider panel at the desired connection point.
2. Insert the 5065 shoulder bolt from one side of the panel.
3. Insert the 5666 sex bolt barrel from the opposite side.
4. Thread the bolt and barrel together until both shoulders sit flush against the panel faces.
5. Install Mod-eez clips in the mating components.
6. Slide components onto the exposed shoulders from each side.

Tips

• For maximum shear strength at 3/4″+, consider the Mod-eez 6065–6066 Sex Bolt Set which uses a larger 1/4″ diameter bolt.
• For thinner materials: 1/2″ → 5045–5566, 5/8″ → 5565–5066.
