Mod-eez 5065 Shoulder Bolt #10-32 x 5/8″

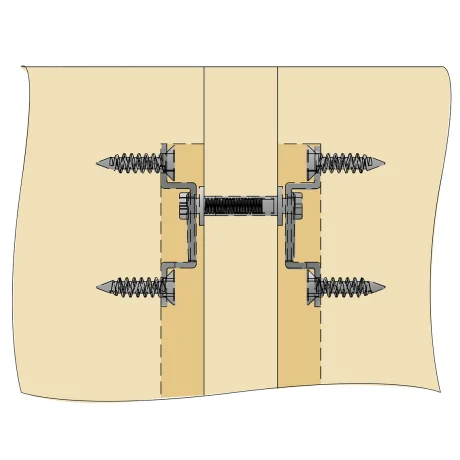

Mod-eez Shoulder Bolts are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder bolt, allowing components to be assembled by sliding the bolt head into position. Once installed, the fastener is fully concealed while providing a strong and precise connection.

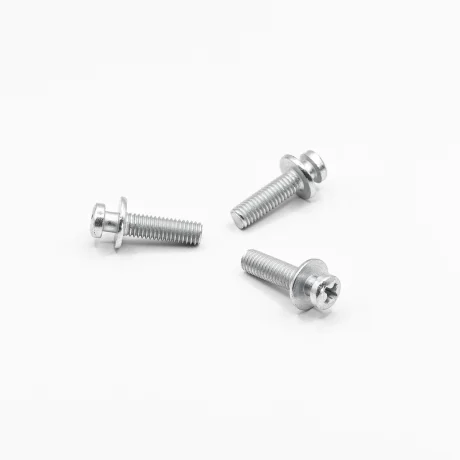

The Mod-eez 5065 Shoulder Bolt features a #10-32 machine thread with a 5/8 inch shoulder length. This longer shoulder configuration provides added spacing and engagement for applications that require increased clearance while maintaining precise alignment and a concealed fastening solution.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #10-32 machine thread shoulder bolt

• 5/8 inch shoulder length

• Concealed fastening solution for cabinetry and case goods

• Precise alignment with hidden installation

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring fine-thread fasteners

• Product code: 5065

• Thread type: #10-32 machine thread

• Shoulder length: 5/8 inch

• Drive type: #2 Phillips

• Material: Steel

Install using an appropriately sized pre-drilled hole aligned with the Mod-eez clip pocket. Assembly is completed by sliding the shoulder bolt head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
