Mod-eez 5565–5066 Sex Bolt Set for 5/8″ Material

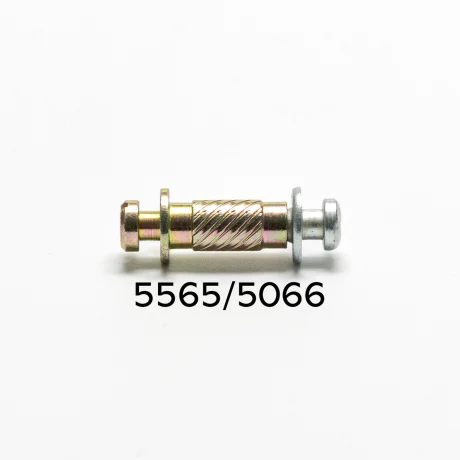

The Mod-eez 5565–5066 Sex Bolt Set is a through-panel fastener designed for 5/8″ divider panels. This set pairs a #10-32 fine-thread shoulder bolt with a matching sex bolt barrel, allowing Mod-eez clip connections on both sides of a shared middle wall or divider panel at the exact same position.

This is the mid-range workhorse of the #10-32 sex bolt set family, targeting the most common divider thickness in standard North American cabinet construction.

Features and Benefits

• Allows Mod-eez clip connections on both sides of a 5/8″ divider panel
• Components connect at exactly the same height on both faces
• #10-32 fine machine thread (32 TPI) for precision fit and vibration resistance
• Through-panel installation with concealed result
• Compatible with all Mod-eez Single and Double Clips

• Standard cabinet middle walls and dividers (5/8″ material)
• Closet partition panels
• Shopfitting display dividers
• Modular furniture systems

• Material Thickness: 5/8″
• Thread: #10-32 (fine machine thread)
• Set Contents: 1× shoulder bolt (5565), 1× sex bolt barrel (5066)
• Installation: Drill through-hole in divider panel, insert bolt from one side and barrel from the other, thread together
• Compatible With: All Mod-eez Single and Double Clips

Steps

1. Drill a through-hole in the divider panel at the desired connection point.
2. Insert the 5565 shoulder bolt from one side of the panel.
3. Insert the 5066 sex bolt barrel from the opposite side.
4. Thread the bolt and barrel together until both shoulders sit flush against the panel faces.
5. Install Mod-eez clips in the mating components.
6. Slide components onto the exposed shoulders from each side.

Tips

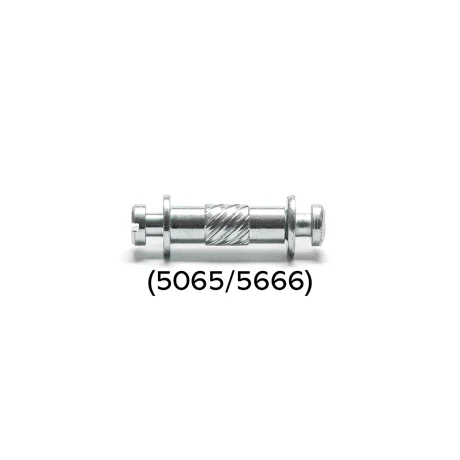

• For 1/2″ material, use the 5045–5566 set. For 3/4″+, use the 5065–5666 set.
