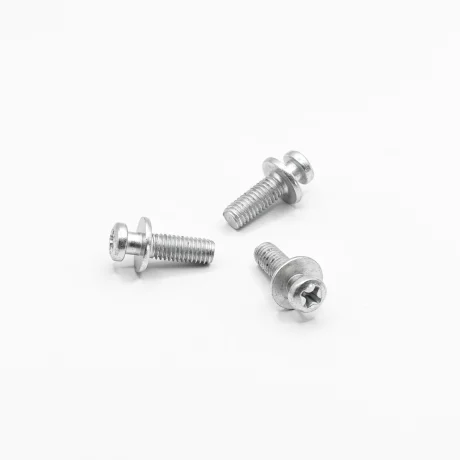

Mod-eez 5565 Shoulder Bolt #10-32 x 1/2″

Mod-eez Shoulder Bolts are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder bolt, allowing components to be assembled by sliding the bolt head into position. Once installed, the fastener is fully concealed while providing a strong and precise connection.

The Mod-eez 5565 Shoulder Bolt features a #10-32 machine thread with a 1/2 inch shoulder length. This configuration is commonly used in standard panel applications where controlled spacing, precise alignment, and a clean concealed connection are required.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #10-32 machine thread shoulder bolt

• 1/2 inch shoulder length

• Concealed fastening solution for cabinetry and case goods

• Precise alignment with hidden installation

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring fine-thread fasteners

• Product code: 5565

• Thread type: #10-32 machine thread

• Shoulder length: 1/2 inch

• Drive type: #2 Phillips

• Material: Steel

Install using an appropriately sized pre-drilled hole aligned with the Mod-eez clip pocket. Assembly is completed by sliding the shoulder bolt head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
