Mod-eez 6065–6066 Sex Bolt Set for 3/4″+ Material

The Mod-eez 6065–6066 Sex Bolt Set is a heavy-duty through-panel fastener designed for 3/4″ and thicker divider panels. This set pairs a 1/4-28 UNF fine-thread shoulder bolt — the largest diameter in the Mod-eez system — with a matching sex bolt barrel, allowing Mod-eez clip connections on both sides of a shared divider panel at the exact same position.

This is the strongest sex bolt set in the Mod-eez lineup. The 1/4″ bolt diameter provides significantly more shear strength than the #10-32 alternative at the same material thickness, making it the right choice for commercial casework, institutional furniture, and any application demanding maximum connection strength.

Features and Benefits

• Allows Mod-eez clip connections on both sides of a 3/4″+ divider panel
• 1/4″ bolt diameter — maximum shear strength in the Mod-eez sex bolt range
• 1/4-28 UNF fine thread (28 TPI) for precision fit and vibration resistance
• Components connect at exactly the same height on both faces
• Through-panel installation with concealed result
• Compatible with all Mod-eez Single and Double Clips

• Heavy-duty commercial casework
• Institutional furniture (libraries, schools, hospitals)
• Thick solid wood cabinetry
• High-stress installations requiring maximum connection strength

• Material Thickness: 3/4″+
• Thread: 1/4-28 UNF (fine thread)
• Bolt Diameter: 1/4″ (largest in Mod-eez sex bolt range)

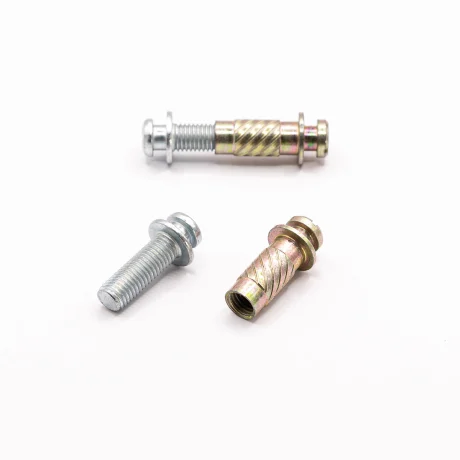

• Set Contents: 1× shoulder bolt (6065), 1× sex bolt barrel (6066)
• Installation: Drill through-hole in divider panel, insert bolt from one side and barrel from the other, thread together
• Compatible With: All Mod-eez Single and Double Clips

Steps

1. Drill a through-hole in the divider panel at the desired connection point.
2. Insert the 6065 shoulder bolt from one side of the panel.
3. Insert the 6066 sex bolt barrel from the opposite side.
4. Thread the bolt and barrel together until both shoulders sit flush against the panel faces.
5. Install Mod-eez clips in the mating components.
6. Slide components onto the exposed shoulders from each side.

Tips

• This is the strongest sex bolt set available. For standard-duty 3/4″+ applications, the #10-32 set (5065–5666) also works and uses a smaller through-hole.
• The 1/4″ diameter requires a correspondingly larger through-hole than the #10-32 or M4 sets.
