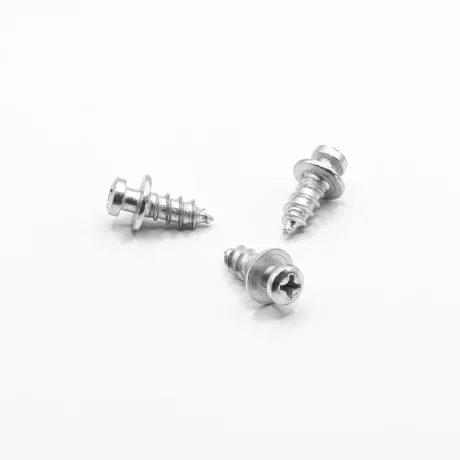

Mod-eez 1065 Shoulder Screw #12 SMT x 1/2″

Mod-eez Shoulder Screws are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder screw, allowing components to be assembled by sliding the screw head into position. Once installed, the fastener is fully concealed while providing a strong and flexible connection.

The Mod-eez 1065 Shoulder Screw is a #12 surface mount shoulder screw with a 1/2 inch length. It is intended for use in a 4 mm pre-drilled hole and is commonly used in panel applications where concealed fastening and repeatable assembly are required.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #12 surface mount shoulder screw

• 1/2 inch shoulder length

• Requires a 4 mm pre-drilled hole

• Concealed fastening solution for cabinetry and case goods

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Interior woodworking applications requiring hidden fasteners

• Product code: 1065

• Thread type: #12 surface mount

• Shoulder length: 1/2 inch

• Compatible hole size: 4 mm

• Drive type: #2 Phillips

• Material: Steel

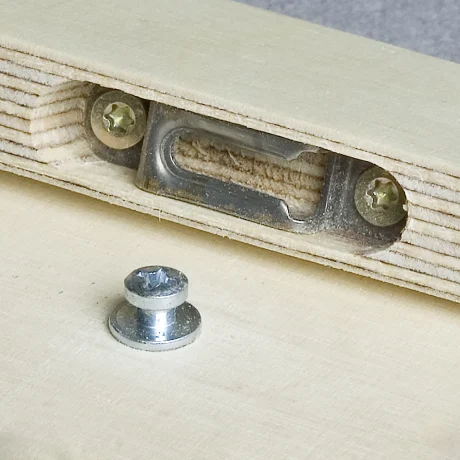

Install using a pre-drilled pilot hole appropriate for the material. Assembly is completed by sliding the shoulder screw head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
