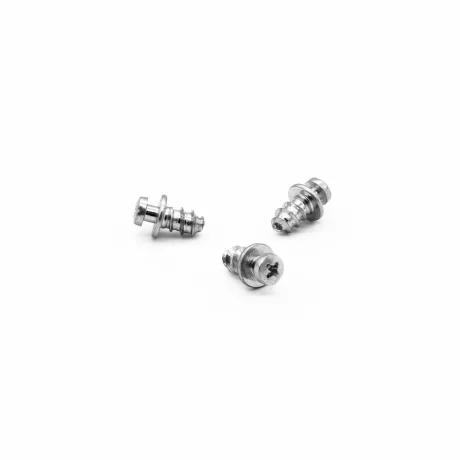

Mod-eez 2053 Shoulder Screw #14 SMT x 3/8″

Mod-eez Shoulder Screws are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder screw, allowing components to be assembled by sliding the screw head into position. Once installed, the fastener is fully concealed while providing a strong and flexible connection.

The Mod-eez 2053 Shoulder Screw is a #14 surface mount shoulder screw with a 3/8 inch shoulder length. This shorter shoulder length is well suited for thinner panel applications where concealed fastening and precise alignment are required.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #14 surface mount shoulder screw

• 3/8 inch shoulder length

• Concealed fastening solution for cabinetry and case goods

• Strong and stable connection with hidden installation

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Thin panel concealed connections

• Interior woodworking applications requiring hidden fasteners

• Product code: 2053

• Thread type: #14 surface mount

• Shoulder length: 3/8 inch

• Drive type: #2 Phillips

• Material: Steel

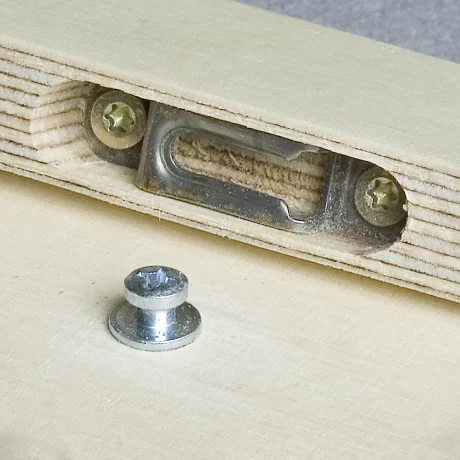

Install using a pre-drilled pilot hole appropriate for the panel material and thickness. Assembly is completed by sliding the shoulder screw head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
