Mod-eez 2055 Shoulder Screw #14 SMT x 1/2″

Mod-eez Shoulder Screws are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder screw, allowing components to be assembled by sliding the screw head into position. Once installed, the fastener is fully concealed while providing a strong and flexible connection.

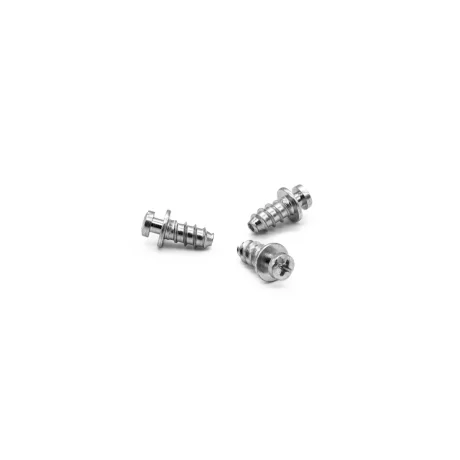

The Mod-eez 2055 Shoulder Screw is a #14 surface mount shoulder screw with a 1/2 inch shoulder length and a blunt tip design. The blunt tip allows controlled installation depth and is ideal for applications where fastener alignment and material protection are important in concealed panel connections.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #14 surface mount shoulder screw

• 1/2 inch shoulder length

• Blunt tip design for controlled installation

• Concealed fastening solution for cabinetry and case goods

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring controlled screw depth and alignment

• Product code: 2055

• Thread type: #14 surface mount

• Shoulder length: 1/2 inch

• Tip style: Blunt

• Drive type: #2 Phillips

• Material: Steel

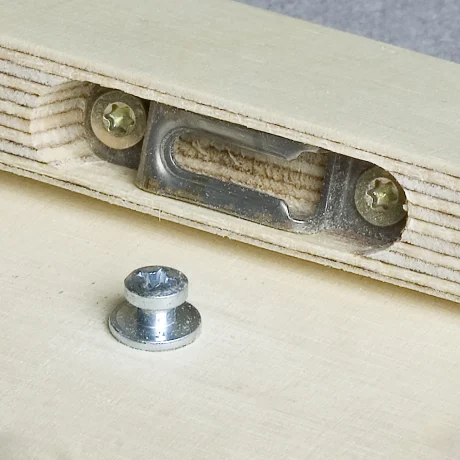

Install using a pre-drilled pilot hole appropriate for the panel material. The blunt tip design helps prevent over-penetration during installation. Assembly is completed by sliding the shoulder screw head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
