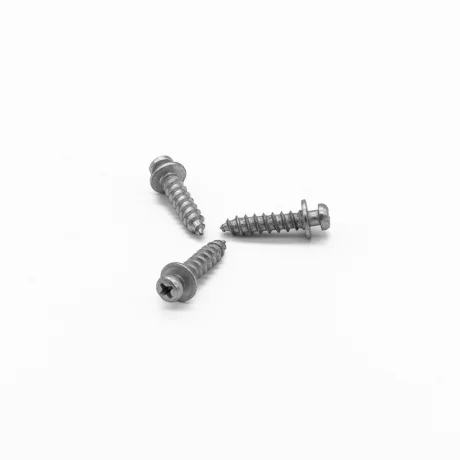

Mod-eez 5070 Shoulder Screw #12 SMT x 7/8″

Mod-eez Shoulder Screws are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder screw, allowing components to be assembled by sliding the screw head into position. Once installed, the fastener is fully concealed while providing a strong and flexible connection.

The Mod-eez 5070 Shoulder Screw is a #12 surface mount shoulder screw with a 7/8 inch shoulder length. This size provides increased shoulder engagement for applications that require additional spacing while maintaining precise alignment and concealed fastening.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• #12 surface mount shoulder screw

• 7/8 inch shoulder length

• Concealed fastening solution for cabinetry and case goods

• Strong, stable connection with hidden installation

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed connections in thicker panels

• Interior woodworking applications requiring hidden fasteners

• Product code: 5070

• Thread type: #12 surface mount

• Shoulder length: 7/8 inch

• Drive type: #2 Phillips

• Material: Steel

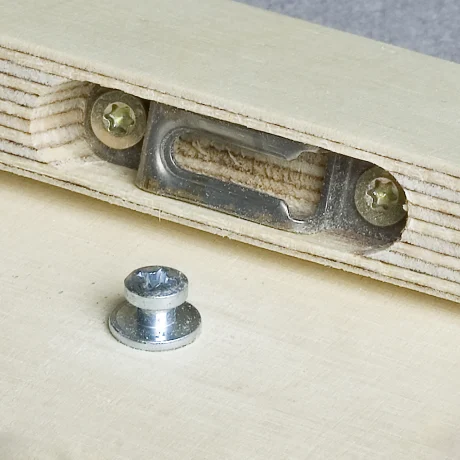

Install using a pre-drilled pilot hole aligned with the Mod-eez clip pocket. Assembly is completed by sliding the shoulder screw head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
