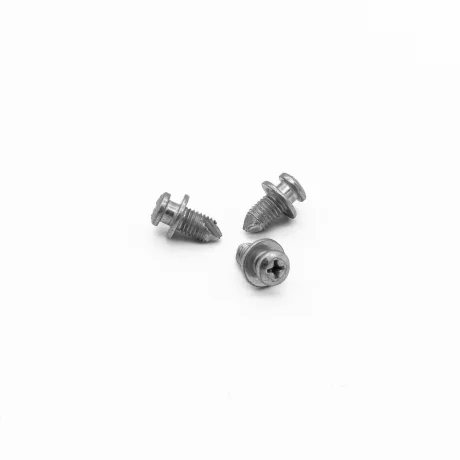

Mod-eez 6043 Shoulder Screw 1/4-28 x 7/16″

Mod-eez Shoulder Screws are designed for use with Mod-eez Single Clip and Double Clip connectors to create a completely concealed fastening solution for cabinetry and case goods. The Mod-eez system joins panels using a spring steel clip with a declining ramp and a collared shoulder screw, allowing components to be assembled by sliding the screw head into position. Once installed, the fastener is fully concealed while providing a strong and flexible connection.

The Mod-eez 6043 Shoulder Screw features a 1/4 inch diameter shoulder with a 7/16 inch shoulder length and a 1/4-28 UNF thread with a thread-cutting edge. This design allows secure installation in applications requiring a larger diameter shoulder and controlled thread engagement while maintaining a concealed connection.

Key Features

• Designed for use with Mod-eez Single Clip and Double Clip connectors

• 1/4 inch diameter shoulder screw

• 7/16 inch shoulder length

• 1/4-28 UNF thread with thread-cutting edge

• Concealed fastening solution for cabinetry and case goods

• Suitable for repeated assembly and disassembly

• Cabinet case goods

• Furniture and millwork panels

• Concealed panel-to-panel connections

• Applications requiring a larger diameter shoulder screw

• Product code: 6043

• Shoulder diameter: 1/4 inch

• Shoulder length: 7/16 inch

• Thread type: 1/4-28 UNF with thread-cutting edge

• Drive type: #2 Phillips

• Material: Steel

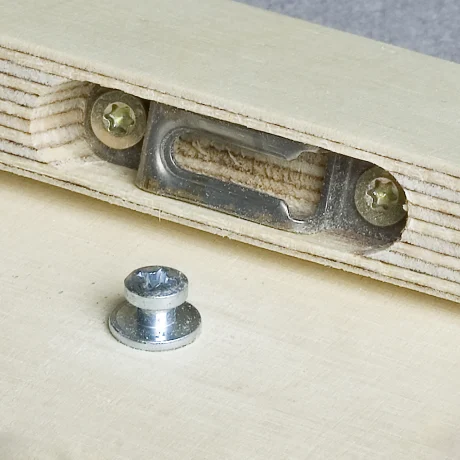

Install using an appropriately sized pilot hole for the panel material. The thread-cutting edge allows the screw to form threads during installation. Assembly is completed by sliding the shoulder screw head down the Mod-eez clip ramp until fully seated. When installed correctly, the fastener is fully concealed within the assembly.
