CONTRA 800 Tabletop Fastener

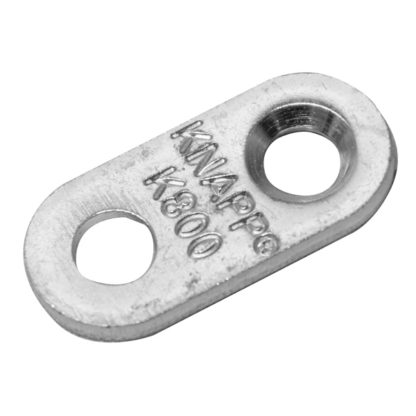

The CONTRA 800 screw connector is a compact steel connector with a blue zinc plated surface finish, designed for fast and invisible connections in furniture and interior construction. The connector is simply screwed into place and is suitable for both indoor and outdoor applications.

CONTRA connections can be made using Euro screws starting from a material thickness of 8 mm. It is particularly well suited for applications involving rebate milling. Countersunk and alternating screw connections are possible, even with Euro screws as short as 6 mm.

Key Features

• Fast and simple screw installation

• Compact design with only a 2.5 mm joint gap

• Suitable for concealed connections

• Removable connection for service or disassembly

• Universal use across furniture and interior applications

• Compatible with Euro screws and SK screws

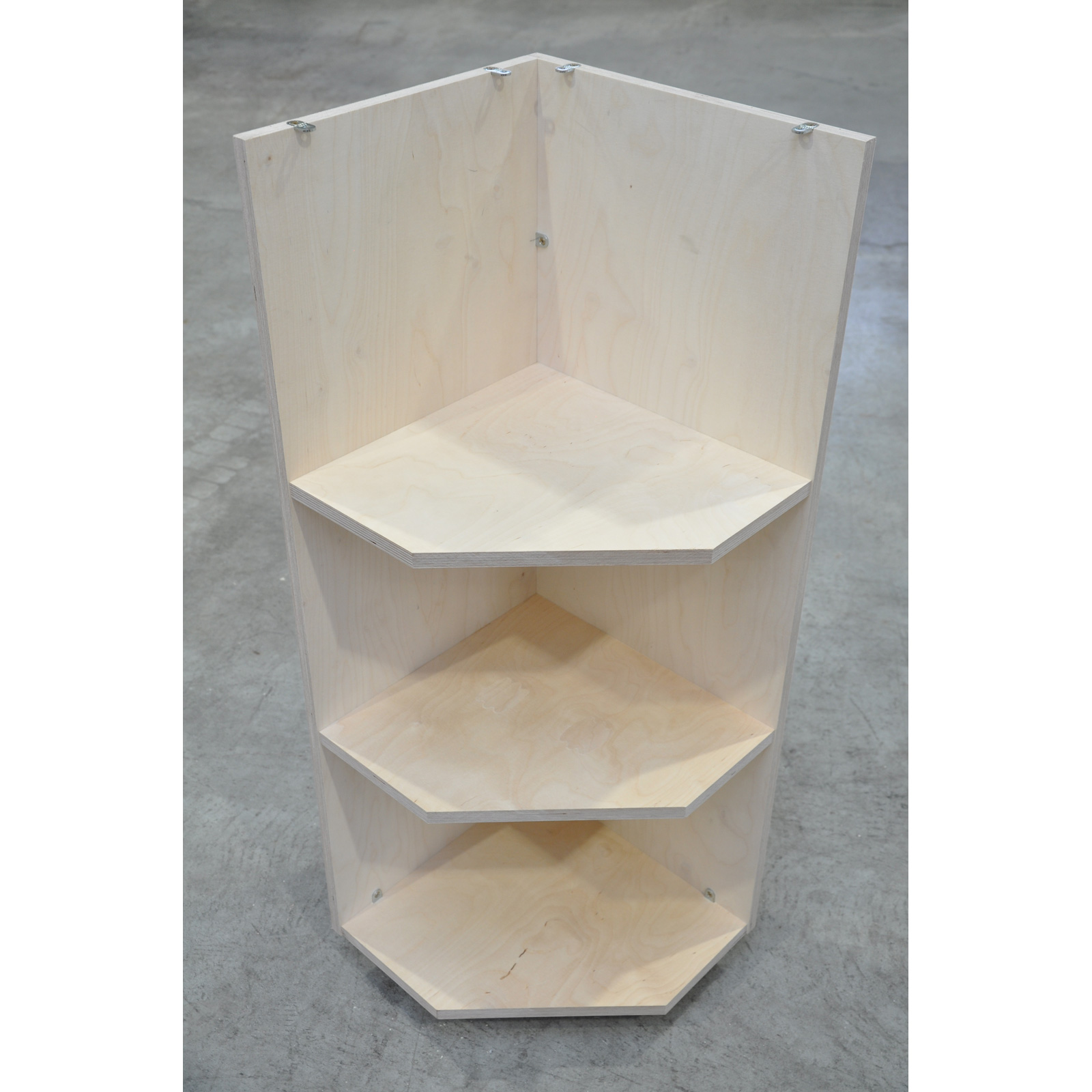

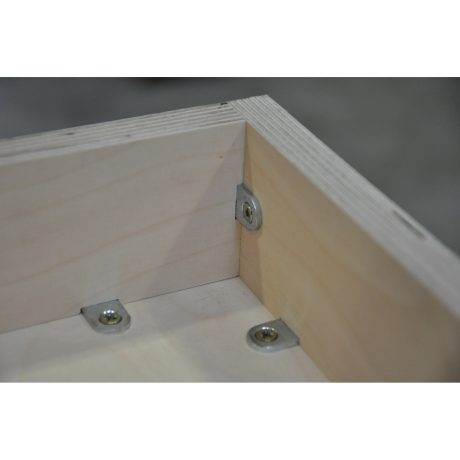

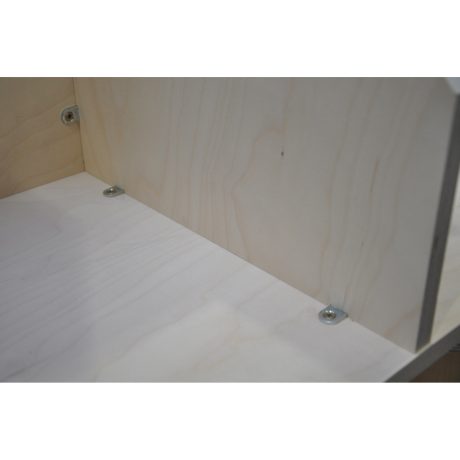

• Furniture construction

• Tabletops and reinforcements

• Profile boards and cornice profiles

• Panels and wall coverings

• Blind doors and compartments

• Backrests and seat cushions

• Wooden shelving systems

• Interior fittings and decorative elements

• Connector type: Screw and cabinet connector

• Fastening method: Screwed connection

• Material: Steel

• Surface finish: Blue zinc plated

• Material compatibility: All wood and plastic materials

• Processing requirement: One saw cut or unscrewing

Dimensions

• Length: 32 mm

• Width: 15 mm

• Thickness: 2.5 mm

Kit Includes

• CONTRA 800 screw connector

Fasteners are not included. Screws are sold separately.

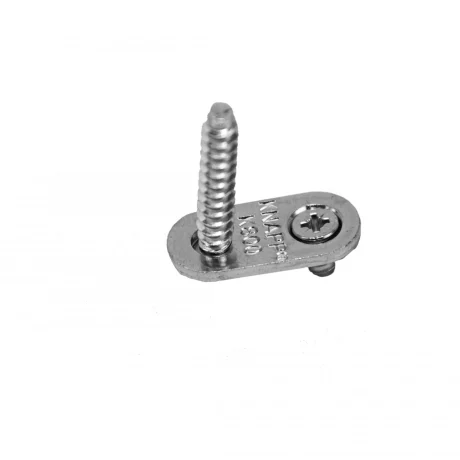

Recommended Screws

The CONTRA 800 is designed for use with the following screw combinations, depending on application requirements:

Option 1 Euro Screws

• Euro screw SK 6.3 × 13 mm

• Euro screw SK 6.3 × 35 mm

Other Euro screw lengths may be used depending on material thickness and application.

Option 2 SK Screws

• SK screw 4.0 × 16 mm

• SK screw 4.0 × 40 mm

Other SK screw lengths may be used depending on application requirements.

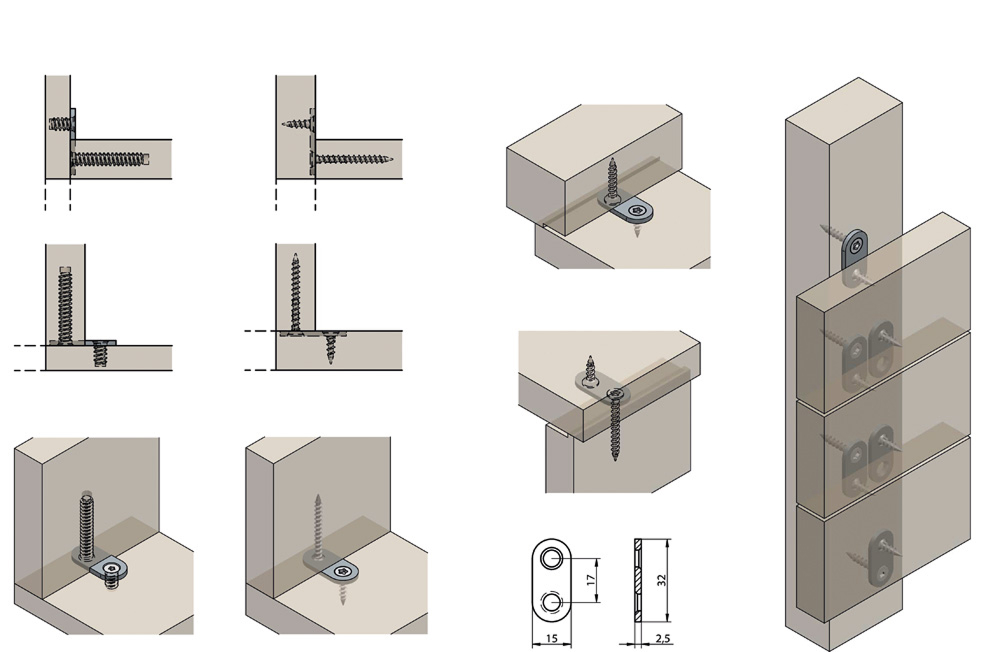

The CONTRA 800 is installed by screwing the connector into the mating components. Only a single saw cut is required. The connector allows for quick assembly and can be unscrewed if the connection needs to be removed or adjusted.
