BASIS 62 x 62 Concealed Post Connector – Column Mounting System

The BASIS 62 x 62 System is a concealed column mounting connector designed for the direct attachment of timber columns and uprights to solid substrates such as concrete, stone, or masonry. As an extension of the ACRO connector system, BASIS combines a factory assembled ACRO connector with a galvanized steel base plate, allowing timber elements to be securely anchored while maintaining a clean architectural finish.

The system enables a force fit, self tensioning connection where the base mounted connector is fixed to the solid surface and the matching connector component is installed in the timber column. Once engaged, the connection provides a durable and nearly invisible attachment, with only a narrow insertion slot visible at the joint.

BASIS 62 x 62 is ideal for prefabricated and site assembled timber structures where precision, adjustability, and visual cleanliness are required. The system is not intended for freestanding columns but is optimized for supported column and post applications.

Key Features

• Concealed column to substrate connection with minimal visible hardware

• Self tensioning joint maintains long term contact pressure

• Disassemblable connection for maintenance or replacement

• High degree of prefabrication for efficient site installation

• Force fit engagement provides precise alignment and load transfer

• Adjustable clamping pressure to accommodate timber tolerances

• Factory assembled connector on galvanized steel base plate

• Tested load performance verified by Holzforschung Austria

• Direct mounting of timber columns to concrete or masonry

• Interior architectural timber structures

• Conservatories and sunrooms

• Exhibition and trade fair construction

• Museum and display structures

• Timber beams, posts, and uprights requiring concealed base fixing

Included in the Set

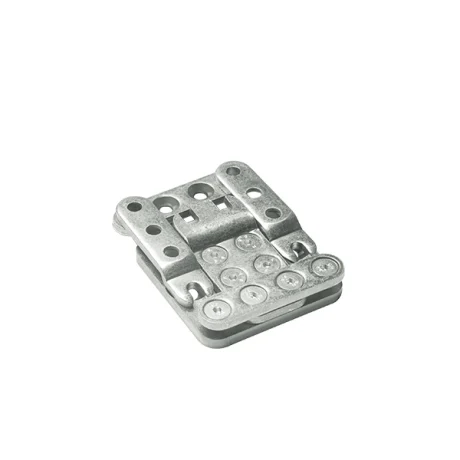

• 1 BASIS 62 x 62 base plate assembly

• Pre-mounted ACRO 62 x 62 connector

• Galvanized steel base plate, factory assembled

Required Fasteners (not included)

• End grain wood connection:

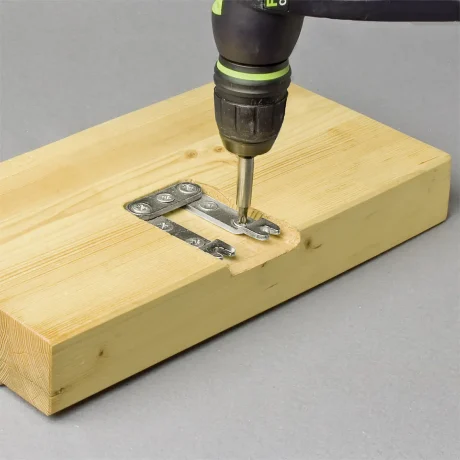

  • 8 pcs self-tapping screws 5 x 60 mm

• Base plate anchoring:

  • Base plate pre-drilled for 2 pcs M8 masonry anchors

Load Capacity

• F0 = 2.90 kN

• Load value refers to shear force in the insertion direction

• Based on testing by Holzforschung Austria

Material

• High-strength, blue-zinc-plated, weather-resistant steel

• Manufactured in Austria

Notes

• Designed for direct mounting of beams, columns, or uprights to solid substrates such as concrete, stone, or masonry

• Not intended for freestanding columns

• Compatible with standard self-tapping screws per Austrian Standard ONORM M5027

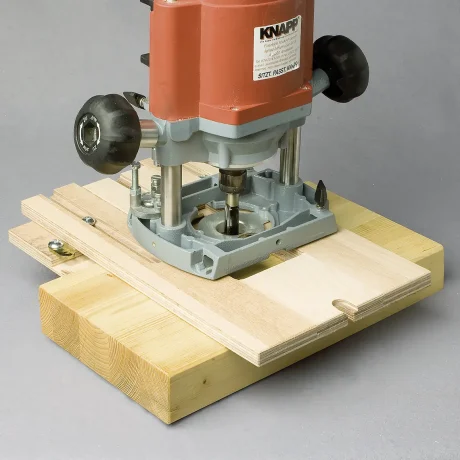

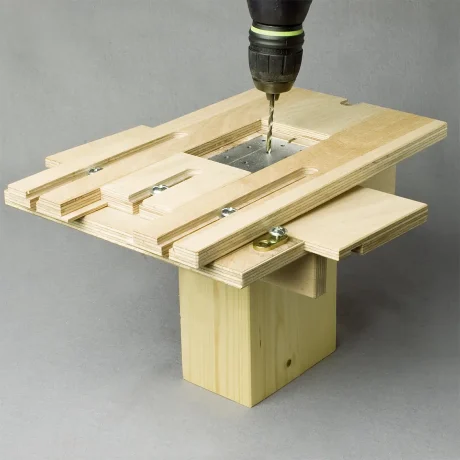

• Rout a 13 mm deep recess into the timber column using a Ø 15 mm slot cutter.

• Secure the BASIS base plate to the solid substrate using appropriate anchors.

• Install the connector components into the routed housing in the timber.

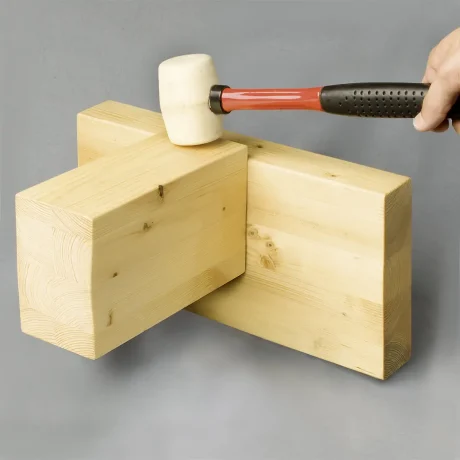

• Insert the column onto the base mounted connector.

• Adjust screw tension to achieve the desired clamping pressure.
