Mod-eez System Sample Pack

The Mod-eez System Sample Pack includes a curated selection of Mod-eez clips and shoulder screws designed for rapid, concealed, and durable assembly of RTA furniture, case goods, and cabinetry. Each component demonstrates the strength, flexibility, and simplicity that define the Mod-eez fastening system.

By combining spring steel clips with precision-fit shoulder screws, Mod-eez connectors create self-tightening joints that require no visible hardware. The result is a clean, professional appearance with strong mechanical performance. Designed for both shop and on-site use, these connectors install quickly and can be reassembled when needed without loss of holding strength.

Features and Benefits

• Fast, precise, and repeatable assembly for RTA furniture and cabinetry

• Concealed fastening system keeps surfaces clean and professional

• Flexible spring steel clips provide strong yet forgiving engagement

• Pass-thru and non-locking clips allow for easy disassembly and re-use

• Semi-locking double clips offer stronger, fixed joints where needed

• Compatible with both 5/8 inch and 3/4 inch or thicker stock

• Suitable for solid wood, engineered panels, metal, and composites

• RTA furniture and case goods

• Cabinetry and shelving

• Architectural millwork and display fixtures

• Shopfitting and interior construction

• Prototyping and modular assembly

• Contents:

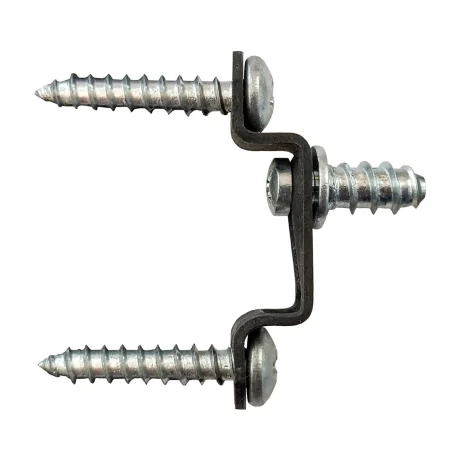

  • 6 × 4032 Non-locking Clips

  • 6 × 4031 Pass-thru Clips

  • 4 × 4037 Double Semi-locking Clips

  • 12 × 2055 Shoulder Head Screws (1/2 inch)

  • 4 × 2065 Male Shoulder Screws

  • 4 × 2066 Female Shoulder Screws

• Material: Spring steel (clips), zinc-plated steel (screws)

• Coating: None

• Connector type: Single and double spring-steel clips used with shoulder screws

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Advantages: Concealed, self-tightening, and demountable connectors

• Suitable materials: Solid wood, plywood, MDF, particleboard, metal, and composite materials

• Recommended tools and accessories:

  • Mod-eez Drilling and Depth Jig (Art. No. CCD/4030S)

  • CNC, plunge router, or spindle moulder for routing pockets

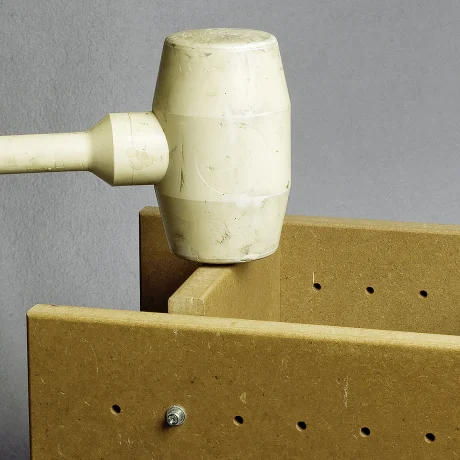

  • Rubber mallet for final assembly

• What is included: All clips and screws listed above

Steps

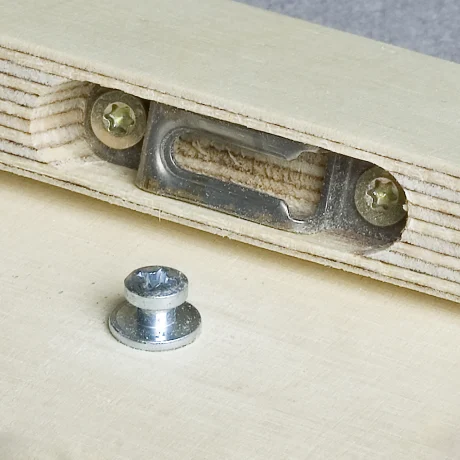

1. Route the pocket for the Mod-eez clip according to the 4030 Series routing chart.

2. Use the Mod-eez Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes spaced 32 mm on center to ensure correct alignment and depth.

3. Mount each clip with PH screws Ø 4.5 mm, using the jig for consistent depth and spacing.

4. Install the shoulder screw in the corresponding workpiece.

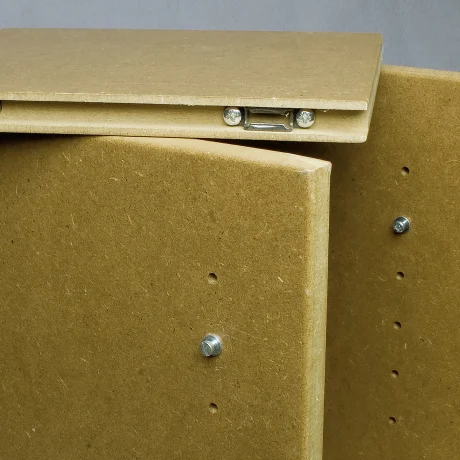

5. Slide or tap the panels together so that the shoulder screw head engages securely into the clip ramp.

Tips

• Pockets can be routed into either the edge or the face of the panel.

• For additional strength, longer PH screws (5 × 60 mm) can be used.

• To prevent rotation, attach the shoulder screw in the pocket and the clip on the surface.

• Mod-eez clips can also be welded to 16-gauge steel for metal-frame applications.

• Always verify proper depth and alignment before final assembly using the drilling jig.
