QUICK-SET – Sample Pack

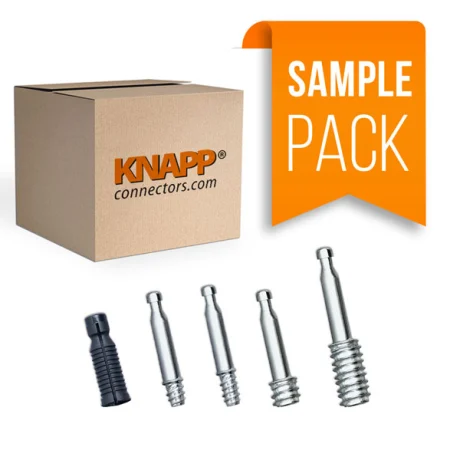

The QUICK-SET Sample Pack includes 24 locking dowels designed for fast, concealed assembly of furniture, cabinetry, and stair components. Each QUICK-SET consists of a threaded steel stud and a matching plastic sleeve that form a self-tightening, permanent connection when joined.

Included in the pack:

• 6 × QUICK-SET 5 × 7.5 mm

• 6 × QUICK-SET 5 × 11 mm

• 6 × QUICK-SET 8 × 8 mm

• 6 × QUICK-SET 8 × 26 mm

Unlike wooden dowels, QUICK-SET connectors do not require glue or clamping. The serrated surface of the sleeve and precision-threaded stud ensure tight engagement and immediate load-bearing capability. Ideal for CNC production or manual assembly, the connector enables efficient prefabrication and on-site installation.

Features and Benefits

• Instant, self-tightening assembly without glue or clamps

• High pull-out strength and permanent connection

• No visible hardware or surface fasteners

• Reduces labor and assembly time compared with glued dowels

• Works with all board materials, solid or composite

• Perfect for automated machining centers and mass production

• Case goods and cabinetry

• Drawers and stair components

• Shopfitting and furniture

• Architectural millwork

• Marine and transport interiors

• Quantity included: 24 dowels

• Material: Threaded steel stud and plastic sleeve

• Coating: None

• Connector type: Two-part locking dowel

• Mounting: Screw in the threaded stud and knock in the plastic sleeve

• Advantages: Concealed, self-tightening, non-visible connector for cabinet and stair assembly

• Suitable materials: All wood and board materials (solid and composite)

• Recommended tools: Doweling jig, cordless drill, or CNC boring machine

• What is included: 24 QUICK-SET connectors (6 pcs of each size)

Steps

1. Drill holes for the anchor bolt and plastic sleeve:

   • For 5 mm versions: drill Ø 5 mm for the metal stud (7.5 or 11 mm deep).

   • For 8 mm versions: drill Ø 8 mm for the metal stud (8 or 26 mm deep).

   • For the plastic sleeve (all sizes): drill Ø 8 mm × 31–32 mm deep.

2. Insert the plastic sleeve loosely into the 8 mm borehole (no adhesive needed).

3. Screw the threaded bolt into the corresponding hole using a cordless drill or by hand.

4. Align the workpieces and join them together with light pressure or a rubber mallet until fully seated.

Tips

• Bolt thread length is 7.5 mm; suitable for vertical center panels from 14 mm thick.

• Use five to six connectors per 600 mm length depending on material.

• The plastic sleeve bore is always 8 mm Ø and 31–32 mm deep to ensure tight fit of the bolt.

• For mass production, CNC machining provides the fastest and most accurate setup.
