ZIPBOLT System – Sample Pack

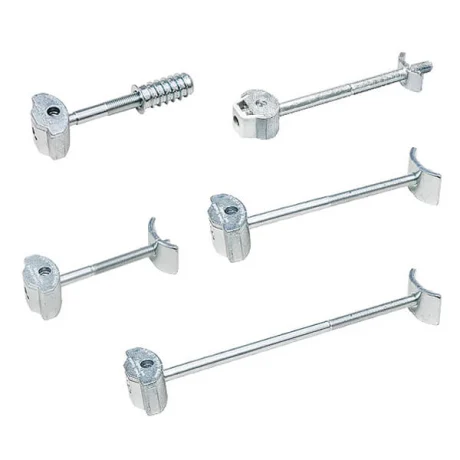

The ZIPBOLT System Sample Pack contains three popular ZIPBOLT connectors: the ZIPBOLT 100 Mini, ZIPBOLT 90 KD, and ZIPBOLT 85. Each demonstrates the precision and speed that define the ZIPBOLT fastening system.

ZIPBOLT connectors are an innovative alternative to traditional countertop, worktop, and frame fasteners. Each connector features an integrated gear-drive mechanism that eliminates the need for screwdrivers, tensioning tools, or excessive tightening. The result is a faster, cleaner, and more reliable joint that can be assembled and disassembled with ease.

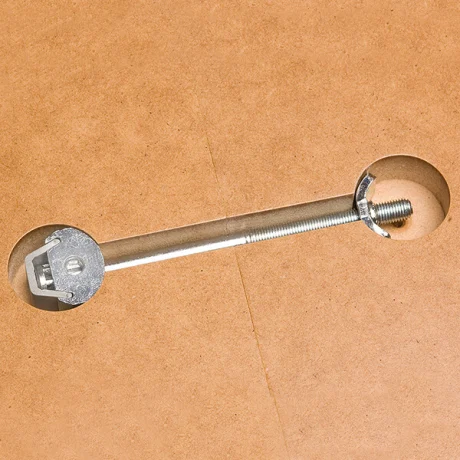

Each ZIPBOLT model uses a threaded rod with a fine metric thread that provides optimal force transmission through the internal gear system. The connectors can be tightened in seconds with a simple hex key or cordless drill, making them ideal for cabinetry, furniture, and architectural applications that demand speed and repeatability.

Features and Benefits

• Fast, clean, and precise assembly with minimal tools

• Gear-drive mechanism eliminates over-torque and slippage

• Allows one-hand tightening for quick and easy installation

• No visible hardware or external tensioning required

• Demountable connection ideal for RTA and flat-pack furniture

• Works with a wide range of materials and thicknesses (16 to 38 mm)

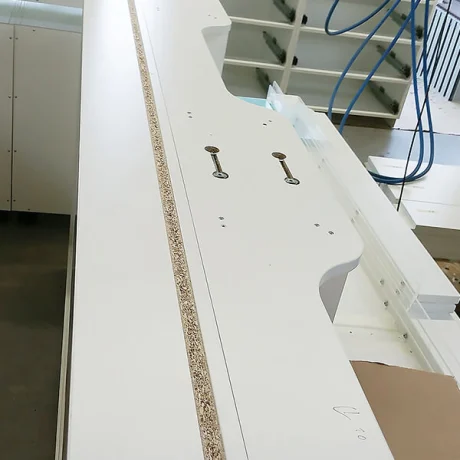

• Countertops and worktops

• Furniture and cabinetry

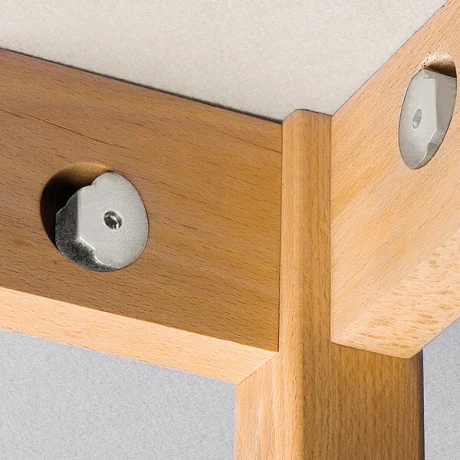

• Bed frames and tables

• Architectural and interior joinery

• Stairs and frames

• Quantity included:

  • 1 × ZIPBOLT 100 Mini

  • 1 × ZIPBOLT 90 KD

  • 1 × ZIPBOLT 85

• Material: Steel and zinc alloy components

• Coating: Zinc-plated for corrosion resistance

• Connector type: Gear-drive tightening connector with threaded rod

• Mounting: Insert into pre-drilled holes or grooves

• Advantages: High-strength, self-tightening, and demountable joint system

• Suitable materials: Solid wood, plywood, MDF, particleboard, and composite panels (16 to 38 mm thickness)

• Recommended tools and accessories:

  • 4 mm or 5 mm hex key or hex bit

  • Cordless drill or handheld screwdriver

  • Drilling machine, plunge router, or CNC for precision holes

• What is included: 3 ZIPBOLT connectors (100 Mini, 90 KD, and 85)

Steps

1. Drill or route the required holes and grooves according to the connector type.

2. Insert the ZIPBOLT connector body into the pre-drilled position.

3. Align the components to be joined.

4. Use a hex key (4 mm or 5 mm) or power driver to tighten the gear mechanism until the joint locks securely.

5. Verify the connection by checking for uniform tension across the joint.

Tips

• The ZIPBOLT 100 Mini uses a 4 mm or 5/32 inch hex key.

• The ZIPBOLT 85 and 90 KD use a 5 mm or 3/16 inch hex key.

• Avoid overtightening; the gear drive ensures optimal clamping force automatically.

• Suitable for use in CNC, nested-based, or manual woodworking setups.

• For best results, confirm correct hole spacing before final tightening.
