Drilling Jig RICON EA/DA 60 x 40

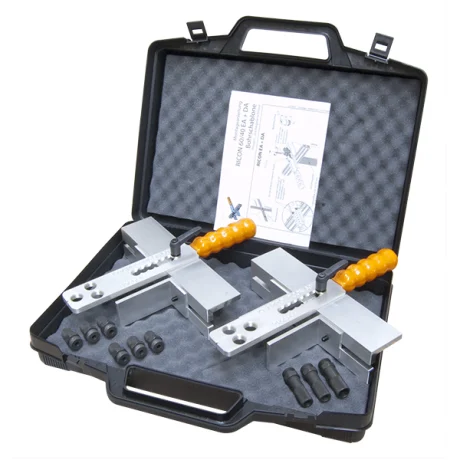

The Drilling Jig RICON EA/DA 40 × 60 is designed to ensure accurate and repeatable drilling when installing RICON EA and RICON DA concealed beam hanger systems. The jig aligns precisely with the beam geometry to guide drilling operations and create the required recesses and holes for proper connector installation.

By controlling drill positioning and alignment, the jig helps reduce installation errors, improves fit accuracy, and speeds up installation on site. It is intended for use with RICON EA and DA beam hanger sets designed for 40 × 60 mm beam dimensions.

Key Features

• Designed for RICON EA and RICON DA beam hanger systems

• Matched to 40 × 60 mm beam dimensions

• Ensures accurate drilling alignment and positioning

• Improves installation consistency and repeatability

• Reduces setup time and installation errors

• Suitable for jobsite and workshop use

• Installation of RICON EA beam hanger systems

• Installation of RICON DA beam hanger systems

• Timber and mass timber construction

• Repetitive installations requiring consistent accuracy

• Compatible systems: RICON EA, RICON DA

• Beam size: 40 × 60 mm

• Product type: Drilling jig

• Function: Beam preparation for concealed connectors

Position the drilling jig on the beam according to the installation instructions and secure it in place. Use the jig to guide drilling and milling operations required for the connector plates. Once drilling is complete, remove the jig and proceed with installation of the RICON connector system.

Refer to the installation instructions for detailed drilling dimensions and tool requirements.
