Mod-eez Drilling Jig K618

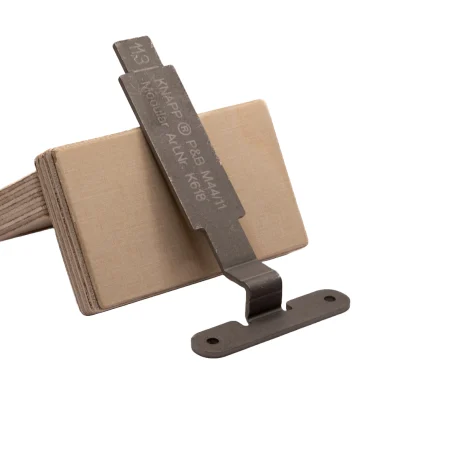

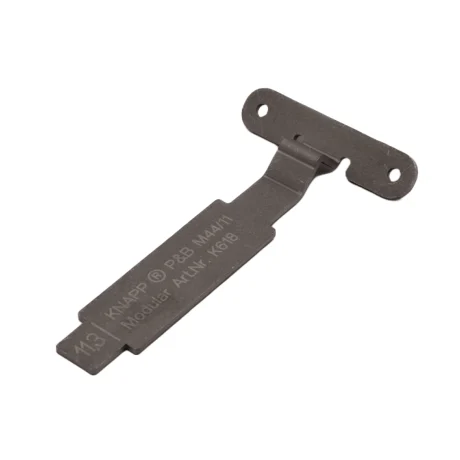

The K618 Drilling and Depth Jig is a precision installation tool designed for Mod-eez wide-pocket single clip connectors. It ensures accurate hole placement and consistent pocket depth for higher-capacity clip installations.

Compatible with:

• 5060 Series single clips

  • 5060, 5061, 5062, 5063, 5064

• 6060 Series single clips

  • 6063, 6064

Important:

• Not compatible with 4030 or 5030 series clips

• Those series require the K617 jig with 32 mm spacing

Key Features

• Fixed 44.5 mm hole spacing for wide-pocket Mod-eez clips

• Integrated depth gauge for 11.3 mm pocket depth

• Eliminates manual measuring and layout errors

• Ensures consistent installation of heavy-duty clips

• Hardened steel construction for durability

• Installation of wide-pocket Mod-eez single clips

• RTA furniture manufacturing

• Case goods production

• Shop and on-site furniture assembly

• Tool type: Drilling and depth jig

• Pocket width: 44.5 mm

• Depth gauge: 11.3 mm ±0.05 mm

• Drill guide hole diameter: Ø 3.5 mm

• Material: Hardened steel

Kit Includes

• K618 drilling and depth jig

• Route the clip pocket to a depth of 11.3 mm

• Position the K618 against the pocket edge

• Verify depth using the integrated gauge

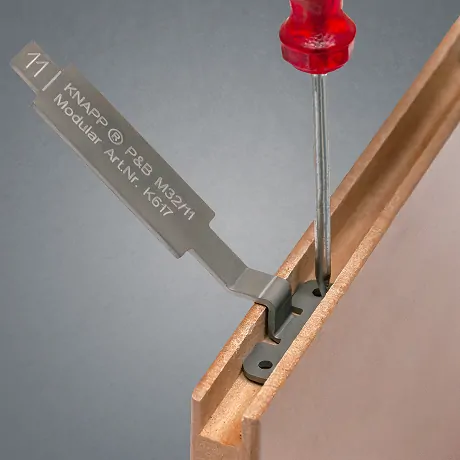

• Drill through both guide holes

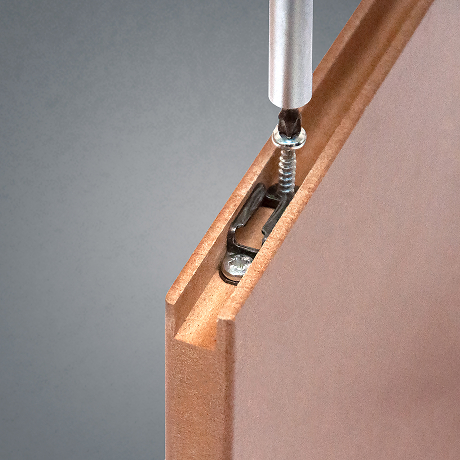

• Install the 5060 or 6060 series Mod-eez clip
