KLICK Dovetail Router Bit – 1/2″ Shank

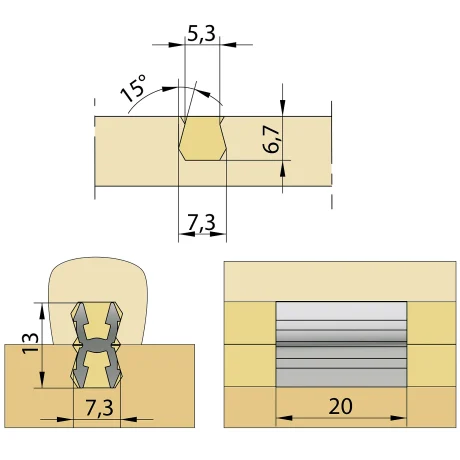

The KLICK Dovetail Router Bit with 1/2″ shank is a custom-profile tungsten carbide tipped router bit designed to cut the dovetail groove required for KLICK and sKLICK connectors. The 1/2″ shank fits standard North American routers and CNC machines with 1/2″ collets.

The bit produces a softened groove edge that allows repeated insertion and removal of KLICK and sKLICK connectors without tearing the material. This is a purpose-built tool — standard dovetail bits will not produce the correct profile for KNAPP connector systems.

Features and Benefits

• Proprietary dovetail profile matched to KLICK and sKLICK connectors
• Tungsten carbide tipped blade for long-lasting performance
• Softened groove edge allows multiple insertions without tearing the material
• 1/2″ shank fits standard North American routers and CNC collets
• Produces a self-tightening dovetail connection

• Cutting dovetail grooves for KLICK connector installation
• Cutting dovetail grooves for sKLICK connector installation
• CNC routing operations with 1/2″ collet
• Handheld router operations with 1/2″ collet
• Cabinet, furniture, and panel assembly preparation
