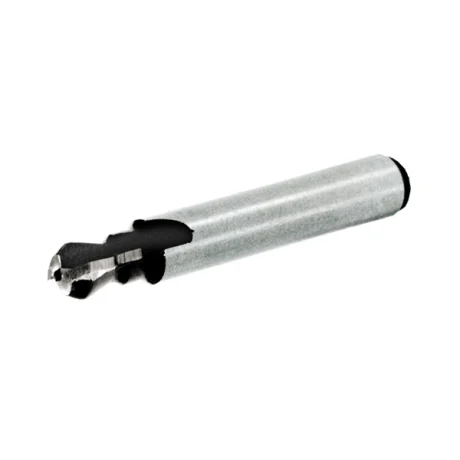

KLICK Dovetail Router Bit – 8 mm Shank

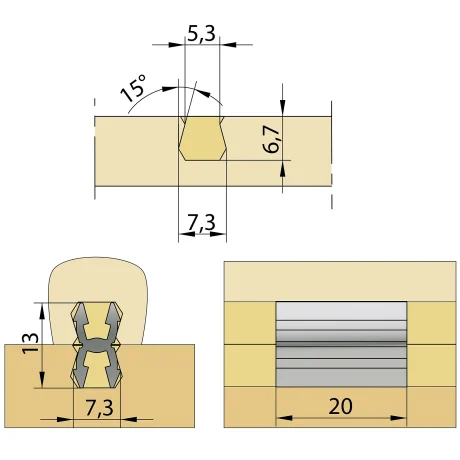

The KLICK Dovetail Router Bit with 8 mm shank is a custom-profile tungsten carbide tipped router bit designed to cut the dovetail groove required for KLICK and sKLICK connectors. The 8 mm shank is the metric standard, compatible with European routers and CNC machines fitted with 8 mm collets.

The bit produces a softened groove edge that allows repeated insertion and removal of KLICK and sKLICK connectors without tearing the material. This is a purpose-built tool — standard dovetail bits will not produce the correct profile for KNAPP connector systems.

Features and Benefits

• Proprietary dovetail profile matched to KLICK and sKLICK connectors
• Tungsten carbide tipped blade for long-lasting performance
• Softened groove edge allows multiple insertions without tearing the material
• 8 mm metric shank for European routers and CNC machines
• Produces a self-tightening dovetail connection

• Cutting dovetail grooves for KLICK connector installation
• Cutting dovetail grooves for sKLICK connector installation
• CNC routing operations with 8 mm collet
• European-standard router operations
• Cabinet, furniture, and panel assembly preparation
