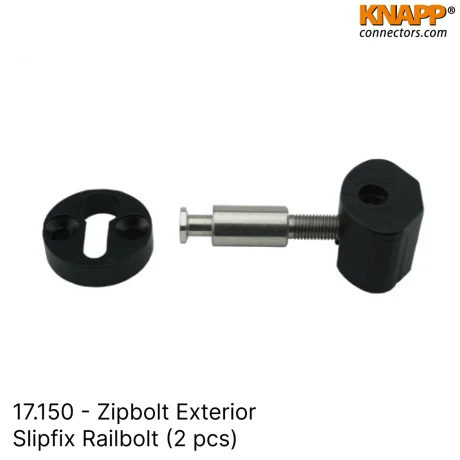

Zipbolt Exterior Slipfix Railbolt

The 17.150 Zipbolt Exterior Slipfix Railbolt is engineered for outdoor use, offering a high-performance, weather-resistant solution for securing rails between fixed posts. Built from stainless steel and epoxy-coated components, this connector is designed to withstand extreme environmental conditions while maintaining a strong, concealed joint. It provides lasting durability and a clean, professional finish for exterior railing installations.

Key Features

• Outdoor-rated construction combining stainless steel and epoxy coating

• Corrosion-resistant, tested for 1,000 hours of corrosion exposure and 1,500 hours of salt spray

• Tightens easily with a standard 5 mm hex bit or Allen key

• Creates a strong, concealed, and weatherproof connection

• Ideal for rail-to-post or post-to-base applications in exterior environments

• Outdoor stair and deck railing systems

• Exterior handrails and balustrades

• Fence and gate post connections

• Any exterior joinery requiring concealed fastening

• Product name: 17.150 Zipbolt Exterior Slipfix Railbolt

• Material: Stainless steel and epoxy-coated steel

• Finish: Corrosion- and weather-resistant epoxy coating

• Connector type: Exterior Slipfix handrail-to-post connector

• Shaft diameter: 9 mm

• Shaft length: 49 mm

• Keyhole disc hole size: Ø 25 mm (1 in)

• Mounting depth: 20 mm (51/64 in)

• Drive type: 5 mm hex bit

• Advantages: Concealed, self-tightening, corrosion-resistant connection

• Recommended tools: 5 mm hex bit, cordless screwdriver

Steps

1. Install the Railbolt Shaft and Housing

   • After preparing the handrail and post, assemble the railbolt’s shaft and gear housing into the rail.

   • Drill a 25 mm (1 in) hole into the post.

   • Install the keyhole disc using the provided screws, ensuring it sits flush or slightly recessed in the post.

2. Connect the Railbolt

   • Insert the railbolt tip into the keyhole disc on both sides of the connection.

   • Push the handrail downwards so the railbolts seat securely into the discs.

3. Tighten the Connection

   • Using a 5 mm hex bit, tighten the gear housing by hand or with a cordless screwdriver until the connection is firm.

   • Avoid using an impact driver to prevent over-tightening or damage.

4. Final Check

   • Confirm that the joint is tight and the connection is secure.

   • Ensure the handrail and post are aligned correctly before finalizing the installation.

Tips

• Ideal for outdoor handrail and deck installations requiring long-term corrosion resistance.

• Do not use abrasive cleaners on epoxy-coated surfaces.

• Periodically check exterior installations for environmental wear or loosening due to temperature changes.
