Slipfix Railbolt – Standard

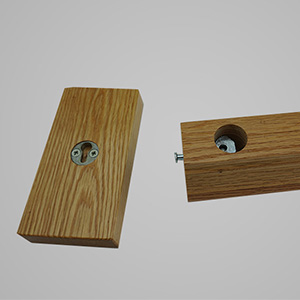

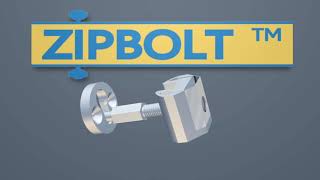

The 13.801 Zipbolt Slipfix Railbolt is an innovative connector designed for professional staircase construction, specifically for securing handrails between fixed posts. It provides a clean, seamless appearance by retracting flush with the end grain of the handrail and engaging directly with keyhole discs mounted in the posts. The connection is tightened with the Zipbolt gear housing drive system, ensuring a fast, strong, and discreet installation.

Key Features

• Flush, pre-installed design for seamless appearance

• Engages keyhole discs in posts for a secure connection

• Tightens easily using a standard 5 mm hex bit or Allen key

• Designed for reliable, long-term handrail fastening

• Compact system suited for tight or angled stair configurations

• Staircase handrail-to-post connections

• Custom architectural rail systems

• Residential and commercial staircase construction

• General woodworking and joinery requiring hidden fasteners

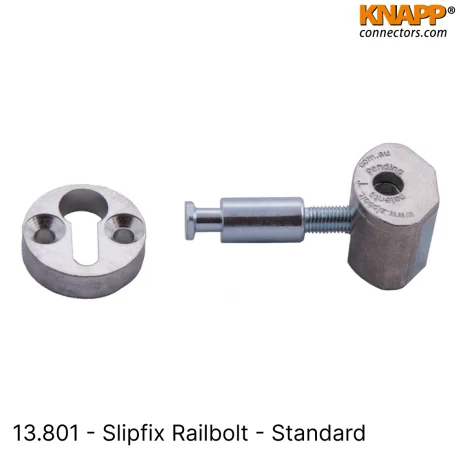

• Product name: 13.801 Zipbolt Slipfix Railbolt – Standard

• Material: Diecast zinc and steel

• Finish: Zinc plated

• Connector type: Slipfix handrail-to-post connector

• Shaft diameter: 9 mm

• Shaft length: 49 mm

• Keyhole disc hole size: Ø 25 mm (1 in)

• Mounting depth: 20 mm (51/64 in)

• Drive type: 5 mm hex bit

• Advantages: Compact, self-tightening concealed connector for stair rail installations

• Recommended tools: 5 mm hex bit, drill, Railbolt drill guide

Steps

1. Mark and Drill the Rail

   • Use the Railbolt Drill Guide to mark the center.

   • Bore a 25 mm (1 in) hole first, then a 10 mm (3/8 in) hole.

   • Insert the Slipfix connector into the rail and verify smooth travel from left to right.

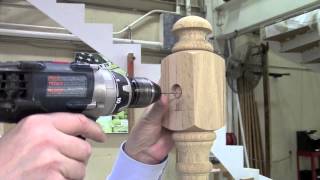

2. Prepare the Newel Post

   • Measure 28 mm (1-1/8 in) upward from the bottom of the rail position to mark the keyhole disc centerline.

   • Bore a 25 mm (1 in) hole to a depth of 7 mm (9/32 in).

   • Install the keyhole disc flush or slightly recessed into the post using pilot holes and screws.

3. Insert and Engage the Railbolt

   • With the Slipfix Railbolt pre-installed, align the rail between the fixed posts.

   • Insert the connector tips into both keyhole discs and push the handrail downward until seated.

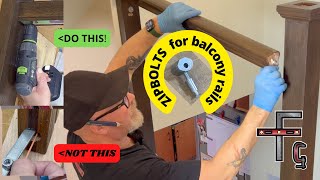

4. Tighten the Connection

   • Using a 5 mm hex bit, tighten the gear housing by hand or with a low-torque drill.

   • Do not use an impact driver to avoid over-tightening or damaging the housing.

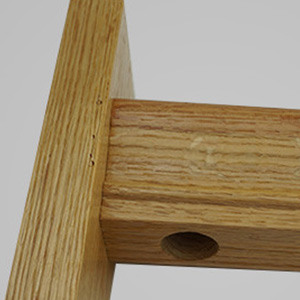

5. Finish and Plug

   • Plug the access hole and sand flush for a smooth finish.

   • Confirm alignment and ensure a secure connection between rail and posts.

Tips

• Ensure the shaft is flush or slightly recessed with the handrail end before installation.

• Always verify alignment before final tightening.

• Railbolt Drill Guide is available for precise hole placement.
