Super UT Post Fastener

The 14.100 Zipbolt Super UT Post Fastener is a heavy-duty connector engineered for anchoring newel posts to wood or concrete substrates. Its all-metal design, extended screw thread, and innovative Open Channel housing make alignment and installation fast and precise. The Zipbolt gear drive system allows for easy tightening with a Torx bit, hex bit, or cordless drill, delivering superior holding strength and long-term stability.

Key Features

• All-metal construction for high-strength applications

• Open Channel housing for accurate alignment

• Works with wood or concrete post installations

• Tightens easily using a T40 Torx bit, hex bit, or cordless drill

• Extended steel thread provides a deep, secure hold

• Durable design built for professional stair and structural use

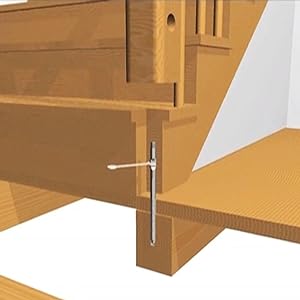

• Staircase newel post to floor connections

• Anchoring posts into wood or concrete

• Structural joinery and rail systems

• Residential and commercial installations

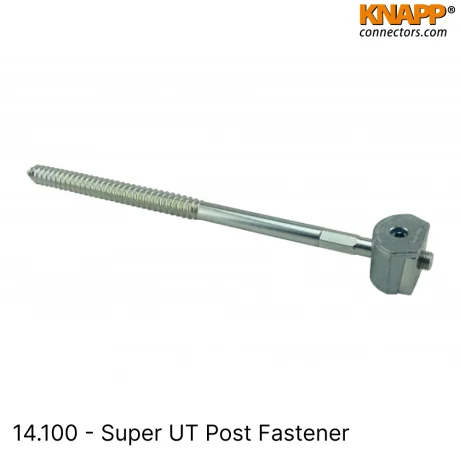

• Product name: 14.100 Zipbolt Super UT Post Fastener

• Material: Steel and diecast zinc

• Finish: Zinc plated

• Connector type: Deep post fastener

• Shaft diameter: Ø 13.5 mm (17/32 in)

• Shaft length: 275 mm (10-13/16 in)

• Minimum bore depth: 28 mm (1-7/64 in)

• Drive type: T40 Torx or 5 mm hex

• Torque rating: Max. 10 Nm

• Mounting: Screw-in for wood or epoxy-set for concrete

• Advantages: Self-tightening, high-torque connector with concealed finish

• Recommended tools: T40 Torx bit, 10 mm wrench, cordless screwdriver

Installation into Wood

1. Mark and Drill

   • Drill a pilot hole of Ø 11–12 mm depending on wood hardness.

   • Ensure hole depth matches the full length of the threaded shaft.

2. Install the Shaft

   • Screw in the shaft using a wrench or the Zipbolt 40.540 Deep Socket Tool.

   • Leave approximately 14 mm (9/16 in) shaft center exposed for housing alignment.

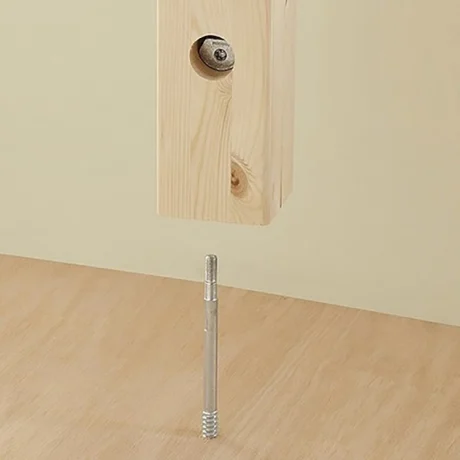

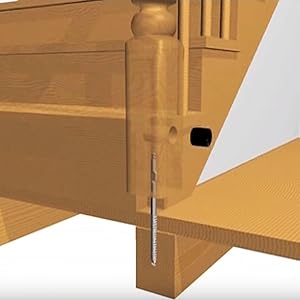

3. Mount the Post

   • Position the newel post over the shaft.

   • Insert the diecast gear housing into the post and align over the thread.

4. Tighten the Housing

   • Using a T40 Torx bit or 5 mm hex bit, tighten the gear housing with a cordless screwdriver.

   • Do not use an impact driver to avoid over-tightening.

5. Final Check

   • Verify that the post is aligned and securely fastened.

Installation into Concrete

1. Drill and Clean the Hole

   • Bore a hole slightly larger than the external thread and to the required depth.

   • Blow or vacuum all dust and debris from the hole.

2. Apply Epoxy

   • Fill one-third to one-half of the hole with epoxy resin adhesive.

3. Install the Shaft

   • Insert the Super UT shaft, ensuring correct height alignment.

   • Wipe away excess epoxy and allow to set per adhesive manufacturer’s instructions.

4. Attach and Tighten

   • Once the epoxy has cured, assemble the post and tighten the gear housing as in the wood installation steps above.

5. Finish

   • Plug the access hole if desired and confirm the connection is solid.

Tips

• Always ensure correct shaft center alignment for tight gear engagement.

• For concrete installations, use a high-quality structural epoxy.

• Avoid overtightening to prevent gear housing damage.
