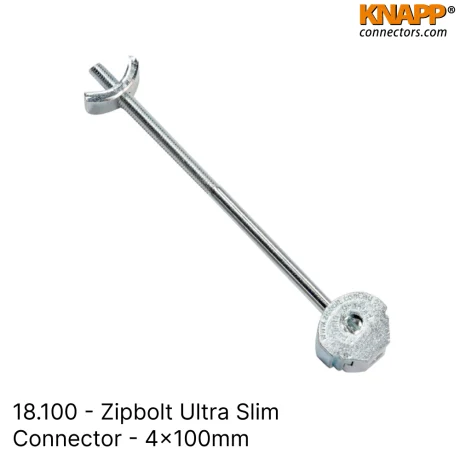

Zipbolt Ultra Slim Connector – 4 x 100 mm

The 18.100 Zipbolt Ultra Slim Connector is a next-generation fastening solution designed for ultra-thin countertops, tabletops, and laminate applications. With an ultra-low profile of only 10 mm, it provides high torque and tension performance without compromising strength. Built for precision and speed, the connector is ideal for high-pressure laminate (HPL) and compact laminate assemblies, where traditional connectors are too bulky. It installs cleanly and tightens easily using a Torx T25 bit for a secure, long-lasting connection.

Key Features

• Ultra-thin 10 mm profile for slim countertop and laminate applications

• Maintains high torque and tensioning strength

• T25 Torx drive ensures secure engagement and smooth tightening

• Compatible with hand ratchet drivers or torque-controlled power tools

• Designed for modern, precision-built furniture and surface installations

• Countertop and laminate joining

• Tabletops and work surfaces

• Kitchen and bath installations

• Furniture and cabinetry with thin materials

• Shopfitting and interior architecture

• Product name: 18.100 Zipbolt Ultra Slim Connector

• Material: Steel and diecast zinc

• Finish: Zinc plated

• Connector type: Ultra-slim worktop connector

• Shaft diameter: Ø 4 mm

• Shaft length: 100 mm (3-15/16 in)

• Minimum bore depth: 10 mm (25/64 in)

• Shaft center offset: 4 mm (5/32 in)

• Drive type: T25 Torx

• Torque limit: Max 10 Nm

• Mounting: Routed slot or borehole using the Zipbolt 40.200 routing template

• Advantages: Compact, strong, concealed connector for thin materials

• Recommended tools: T25 Torx bit, hand ratchet driver, or torque-set power driver

Steps

1. Prepare the Slot or Borehole

   • Route a 10 mm (3/8 in) deep slot or recess for the Ultra Slim Connector using the Zipbolt 40.200 routing template (optional).

   • Ensure the recess depth allows the connector to sit flush within the material.

2. Insert the Connector

   • Position the Ultra Slim Connector in the routed slot or borehole, ensuring proper alignment between panels.

3. Tighten the Connection

   • Engage the T25 Torx drive using a hand ratchet or torque-limited power tool.

   • Tighten gradually to a maximum of 10 Nm for a secure, even hold.

   • Avoid using an impact driver to prevent damage to the gear housing.

4. Final Check

   • Verify that the joined materials are fully seated and aligned.

   • Ensure the connection is firm and flush with no gaps.

Tips

• Ideal for joining HPL, compact laminate, or other thin materials down to 13 mm thickness.

• Always use a torque-controlled tool to maintain precision and avoid over-tightening.

• For perfect routing alignment, use the optional Zipbolt 40.200 template.
