Zipbolt UT Bore Connector – 164 x 35 mm

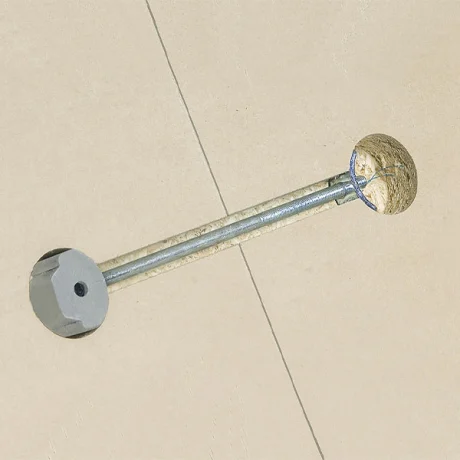

The 10.700 Zipbolt UT Bore Connector provides a fast and reliable solution for joining worktops, countertops, and panels. With its all-metal diecast gear housing, this connector offers superior durability, higher torque resistance, and a clean concealed finish.

Engineered for efficiency, the 10.700’s extended 164 mm length allows it to handle larger and heavier surfaces with ease. Installation is quick and straightforward using a 5 mm Allen key or hex bit, delivering a secure and professional connection every time.

Key Features

• Rapid joining of worktops and countertops

• Strong all-metal diecast housing for maximum torque and strength

• Simple tightening with a 5 mm Allen key or hex bit

• Concealed, self-tightening design for a clean appearance

• Saves time and reduces labor during installation

• Kitchen and bathroom worktops

• Countertops and table joints

• Furniture and cabinetry

• Interior and commercial fit-outs

• Large panels and custom woodworking

• Dimensions: 164 × 35 mm

• Material: All-metal diecast housing

• Finish: Zinc-plated for corrosion protection

• Connector type: Gear-driven worktop connector

• Drive type: 5 mm Allen key or hex bit

• Advantages: High torque strength, quick installation, and long-lasting hold

• Recommended accessories:

  • Routing Template 40.200 for precise recess creation

  • Standard 5 mm hex key or hex bit

Steps

1. Use the 40.200 Routing Template (sold separately) to create an accurate recess slot for the connector.

2. Insert the Zipbolt UT Bore Connector securely into the routed recess.

3. Engage the gear mechanism using a 5 mm Allen key or hex bit until the joint locks securely.

4. Ensure both workpieces are aligned and fully seated for a tight connection.

Tips

• Do not use an impact driver to protect the internal gear system.

• Compatible with both CNC machining and manual routing setups.

• Ideal for heavy-duty countertop and panel applications.

• Provides a professional, concealed connection that can be re-tightened if needed.
