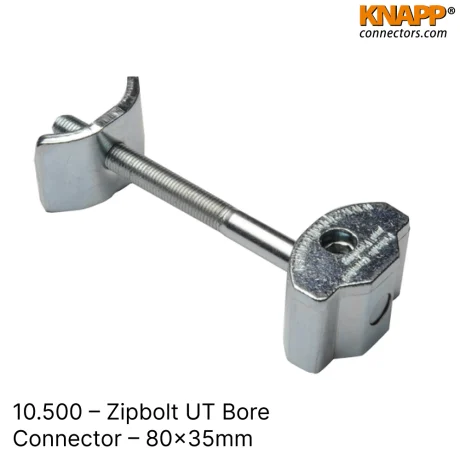

Zipbolt UT Bore Connector – 80 x 35 mm

The 10.500 Zipbolt UT Bore Connector offers a fast and efficient solution for joining worktops, countertops, and panels. Its all-metal diecast gear housing ensures long-term durability and high torque performance, making it ideal for both professional and commercial installations.

Designed for precision and speed, the 10.500 Zipbolt connector uses a patented gear-drive mechanism that tightens easily with a 5 mm Allen key or hex bit. This connector eliminates the need for traditional tensioning methods, allowing for quick assembly and disassembly while maintaining a secure, flush joint.

Key Features

• Rapid assembly in seconds for worktops and countertops

• All-metal diecast gear housing provides superior strength and torque

• Simple installation using a 5 mm Allen key or hex bit

• Self-tightening mechanism ensures long-lasting joint stability

• Cost-effective design reduces labor and assembly time

• Kitchen and bathroom worktops

• Furniture and countertop installations

• Commercial cabinetry and joinery

• Interior fit-outs and panel assembly

• Product name: 10.500 Zipbolt UT Bore Connector

• Dimensions: 80 × 35 mm

• Material: All-metal diecast housing

• Finish: Zinc-plated for corrosion resistance

• Connector type: Gear-driven worktop connector

• Drive type: 5 mm Allen key or hex bit

• Advantages: Fast assembly, precise gear engagement, long-lasting hold

• Recommended accessories:

  • Routing Template 40.200 for accurate slot creation

  • Standard 5 mm hex key or hex bit

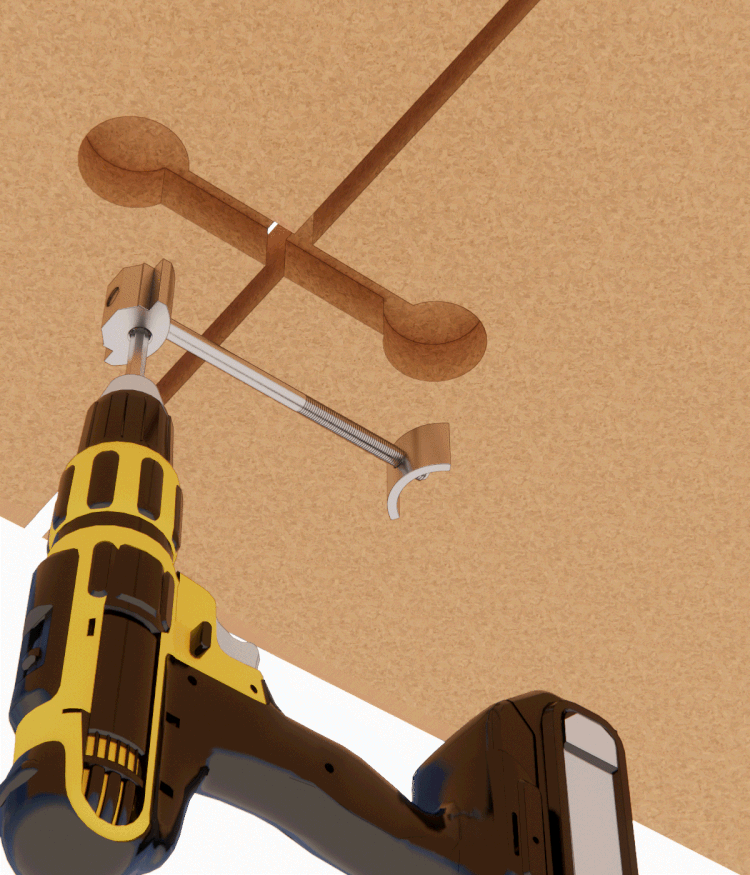

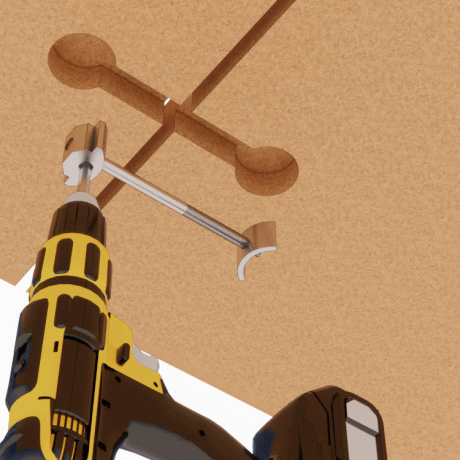

Steps

1. Prepare the workpiece:
   Use the 40.200 Routing Template (sold separately) to create a recess slot according to the connector dimensions. Ensure proper alignment and depth (minimum bore depth 20 mm).

2. Insert the connector:

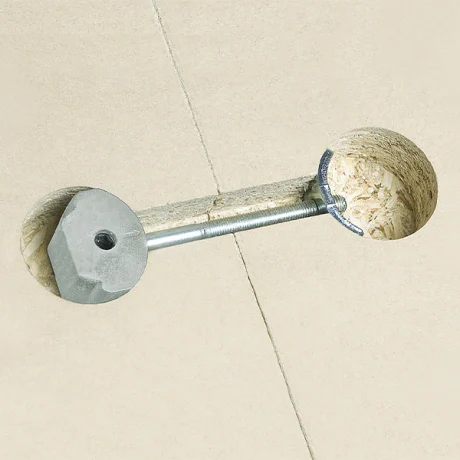

   Place the Zipbolt UT Bore Connector securely into the routed slot.

3. Tighten the assembly:
   Engage the built-in gear system using a 5 mm Allen key or hex bit and tighten until the joint is secure.

4. Final check:
   Confirm that the connection is fully seated and the surfaces are flush.

Tips

• Do not use an impact driver to avoid damaging the gear mechanism.

• Suitable for both manual and CNC processing setups.

• Ideal for joining 16 to 38 mm board thickness materials.

• Quick, reliable, and clean solution for modern countertop assembly.
