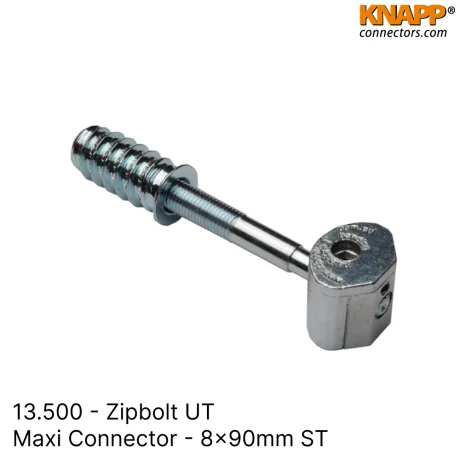

Zipbolt UT Maxi Connector – 8 x 90 mm ST

The 13.500 Zipbolt UT Maxi Connector features an innovative “Open Channel” diecast housing that allows for easy placement and accurate positioning, even in over-bored holes. This improved design simplifies installation while ensuring a strong and reliable joint. With a reduced 25 mm housing diameter, it provides effective tightening while components are already connected, making it ideal for assembling legs, rails, and other furniture elements quickly and securely.

Key Features

• Open Channel housing for easy placement and positioning

• Reduced 25 mm housing fits compactly into standard boreholes

• Effective tightening while parts are already joined

• Works with dowels and adhesives for one-step assembly

• Concealed, self-tightening connection for clean appearance

• Compatible with wood and composite materials

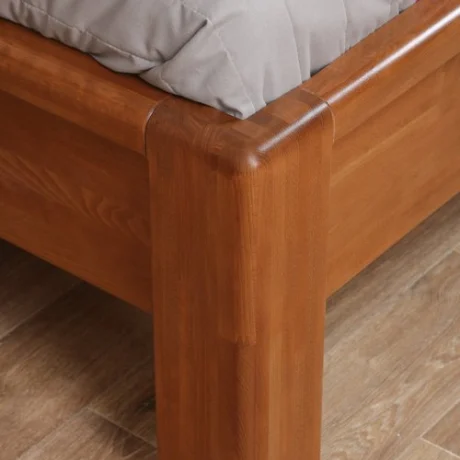

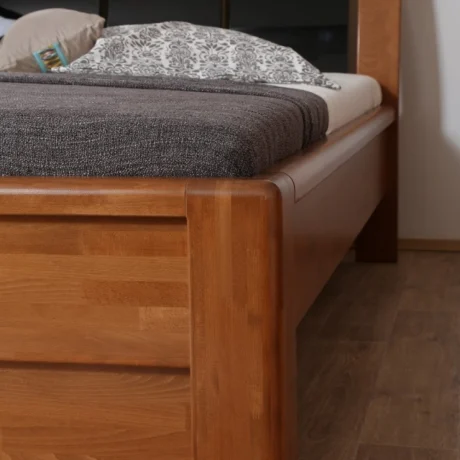

• Bed and table frames

• Furniture joinery

• Case goods and cabinetry

• Architectural millwork and shopfitting

• Panel and frame connections

• Product name: 13.500 Zipbolt UT Maxi Connector ST

• Material: Zinc diecast and steel

• Finish: Zinc plated

• Connector type: Demountable knock-down connector

• Shaft diameter: 8 mm

• Gear housing diameter: 25 mm (1 in)

• Minimum bore depth: 20 mm (51/64 in)

• Drive type: 5 mm hex bit or Allen key

• Mounting: Pre-drilled boreholes for insert screw and housing

• Advantages: Self-tightening, easy placement, and strong concealed joint

• Recommended tools: 5 mm hex bit and drill

Steps

1. Prepare the Components

   • Mark the center hole for the insert screw.

   • Bore a 12 mm (15/32 in) perpendicular hole. For hardwoods, slightly increase bore size to 12.5–13 mm and apply wax for easier threading.

2. Install the Insert Screw

   • Drive in the insert screw using an 8 mm hex bit or Allen key.

   • Ensure it sits flush or slightly below the surface.

3. Drill the Railing or Mating Component

   • Bore holes according to the specified diameters and distances.

   • Depending on material thickness, connectors may be set deeper into the wood.

4. Insert the Screw Shaft

   • Thread the screw shaft into the insert screw counterclockwise until secure.

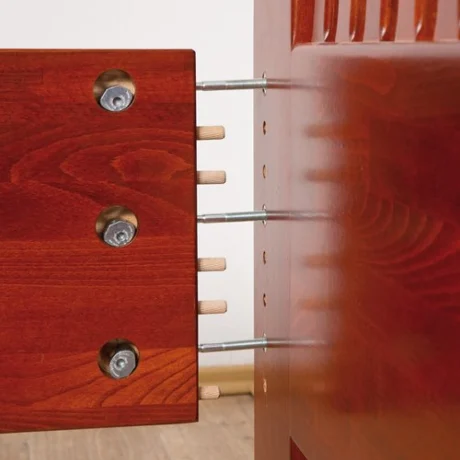

5. Assemble the Joint

   • Push the two components together until aligned.

6. Tighten the Connection

   • Place the gear housing onto the screw shaft thread.

   • Tighten using a 5 mm hex bit in a power drill or manual driver.

   • Optional: Plug the 25 mm (1 in) access hole after assembly.

Tips

• Avoid using an impact driver to prevent damage to the gear housing.

• For maximum strength, use with dowels and adhesives during assembly.

• Ensure alignment before final tightening to prevent joint stress.
