Zipbolt UT Mini-KD Connector – 6 x 43 mm

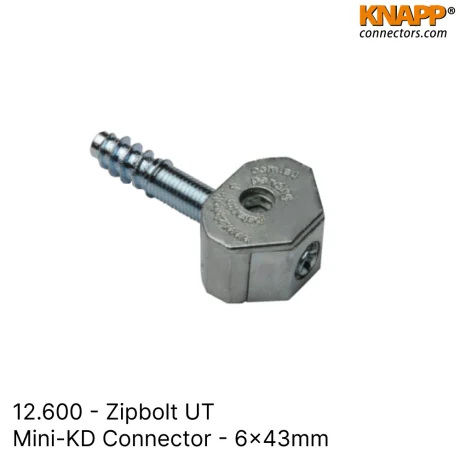

The 12.600 Zipbolt UT Mini-KD Connector provides a compact, high-performance alternative to traditional cam lock connectors. Designed for precision and stability, it delivers superior tensioning that prevents loosening over time. The connector features a 6 mm screw shaft that fits directly into a 5 mm pre-drilled hole, with installation completed using a 4 mm hex bit or screwdriver.

Its all-metal construction ensures lasting durability, making it ideal for fine furniture, cabinetry, and compact joinery applications where strength and simplicity are required.

Key Features

• 6 mm shaft fits directly into 5 mm borehole

• Enhanced tensioning prevents joint loosening

• Compact 25 mm gear housing suitable for tight installations

• Quick and easy tightening using a 4 mm hex bit

• Reliable alternative to cam lock connectors

• Works in horizontal or vertical mounting positions

• Furniture and cabinetry

• Case goods and shelving

• Compact joinery and interior fittings

• Shopfitting and modular assemblies

• Wood-based panel and composite applications

• Product name: 12.600 Zipbolt UT Mini-KD Connector

• Material: All-metal diecast zinc and steel

• Finish: Zinc plated

• Connector type: Mini knock-down connector

• Shaft diameter: 6 mm

• Borehole diameter: 5 mm

• Minimum bore depth: 12.5 mm (31/64 in)

• Drive type: 4 mm hex bit

• Mounting: Screwed into 5 mm borehole

• Advantages: Compact, self-tightening connector offering high tension stability

• Torque rating: Max. 10 Nm

• Recommended tools: 4 mm hex bit or standard screwdriver

Steps

1. Prepare the Material

   • Drill a 5 mm hole in the component where the connector will be installed.

   • Ensure the hole depth is at least 12.5 mm (31/64 in) and free from debris.

2. Insert the Shaft

   • Screw the 6 mm shaft of the Mini-KD connector directly into the pre-drilled 5 mm hole.

   • Tighten by hand until seated securely.

3. Align the Components

   • Position the parts to be joined, ensuring alignment of both boreholes for a flush fit.

4. Secure the Housing

   • Insert and tighten the diecast gear housing using a 4 mm hex bit or screwdriver.

   • Do not overtighten to avoid exceeding the maximum torque limit (10 Nm).

5. Final Check

   • Verify the components are securely joined and aligned with no visible gaps.

   • The connection should remain firm and stable under load.

Tips

• Suitable for horizontal or vertical mounting.

• Designed for thin materials from 13.5 mm (17/32 in) and up.

• Loosen the connection gradually and alternately if disassembly is required.
