Zipbolt UT Railbolt Connector

The 13.600 Zipbolt UT Railbolt Connector is engineered for precision, speed, and reliability in staircase and general woodworking assembly. Featuring an advanced Open Channel diecast housing, this connector allows for effortless thread engagement even in deep or over-bored holes. Designed to simplify handrail-to-newel post connections, it delivers fast, secure, and professional results every time.

Key Features

• Open Channel housing for easy thread engagement and precise alignment

• Designed for handrail and newel post connections

• Compatible with hex bits and Allen keys for quick tightening

• Suitable for both professional and DIY installation

• All-metal construction for strength and long-term durability

• Staircase handrail-to-newel post connections

• Handrail-to-fitting joints

• Architectural and custom woodworking

• Furniture and fixture assembly

• General joinery requiring concealed fasteners

• Product name: 13.600 Zipbolt UT Railbolt Connector

• Material: All-metal diecast zinc and steel

• Finish: Zinc plated

• Connector type: UT Railbolt

• Shaft diameter: M6

• Housing diameter: 25 mm (1 in)

• Shaft length: 98 mm

• Minimum bore depth: 20 mm (51/64 in)

• Drive type: 5 mm hex bit (SW5)

• Mounting: Threaded shaft with diecast housing for angled tightening

• Advantages: Self-tightening, durable, concealed connection for staircase assembly

• Torque rating: Max. 10 Nm

• Recommended tools: 5 mm hex bit or Allen key

Steps

1. Prepare the Template

   • Cut a 5 mm wafer from a handrail to create a drilling template.

   • Mark a 2 mm (1/16 in) pilot hole at 24 mm (15/16 in) from the bottom of the rail.

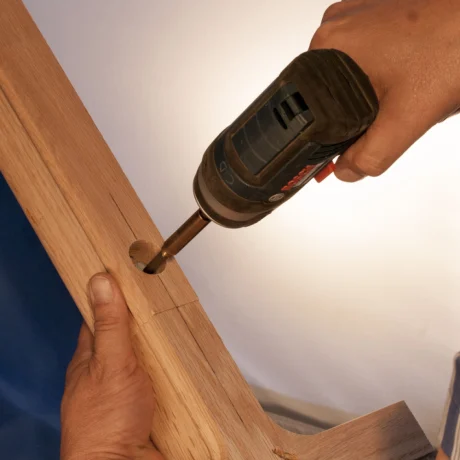

2. Drill the Rail and Fitting

   • Bore a 25 mm (1 in) diameter access hole on the bottom of the rail, 38 mm (1-1/2 in) from the end.

   • Drill a 10 mm (3/8 in) diameter hole into the end of the rail to a depth of 38 mm (1-1/2 in).

3. Install the Screw Shaft

   • Screw the threaded shaft into the newel post using a wrench or the Zipbolt 40.520 Deep Socket Tool.

   • Ensure approximately 48 mm (1-7/8 in) of the bolt protrudes.

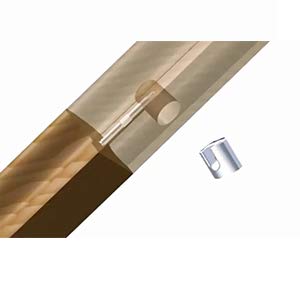

4. Position the Gear Drive Housing

   • Insert the diecast gear housing into the 25 mm (1 in) access hole on the underside of the rail.

   • Align the Open Channel slot with the threaded shaft for smooth engagement.

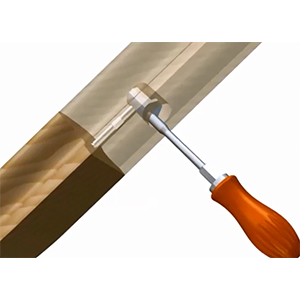

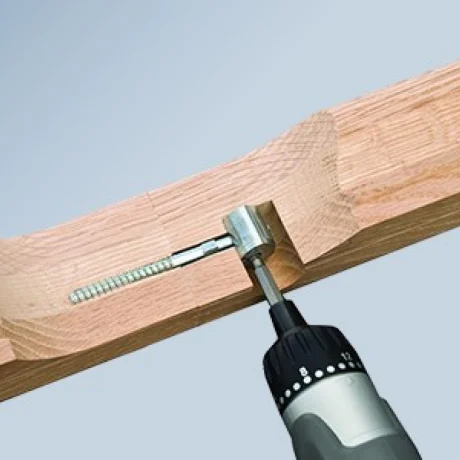

5. Tighten the Connection

   • Use a 5 mm hex bit with a low-torque drill or Allen key to secure the housing over the shaft.

   • Do not use an impact driver.

6. Finish and Plug

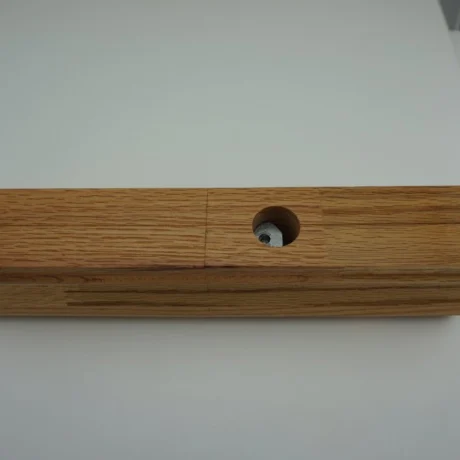

   • Insert a 25 mm (1 in) wooden plug into the access hole and sand flush for a clean finish.

Tips

• Ideal for connecting handrails at 90°–45° angles.

• Apply a small amount of wood glue before inserting the wooden plug.

• Always verify alignment before final tightening for a clean, professional fit.
