GIGANT 180 x 40 Heavy Timber Beam Hanger

The GIGANT 180 x 40 is a high-capacity concealed beam hanger engineered for heavy timber, log building, and mass timber construction. The connector consists of two identical steel brackets that interlock through a dovetail-like engagement, allowing the secondary beam to slide into position quickly with immediate load transfer.

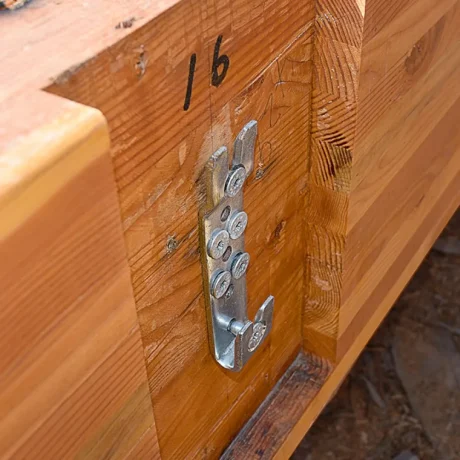

One bracket is recessed into the primary beam while the mating bracket mounts directly to the secondary member using KNAPP SK screws. The short hooking path supports rapid on-site installation, and the self-tensioning connector geometry maintains long-term joint compression. The connection can be installed fully concealed or visible depending on the project requirements.

Key Features

• High-load concealed connector for heavy beam-to-beam connections

• Short hooking path enables fast assembly

• Self-tensioning design ensures continuous joint pressure

• Suitable for softwood and hardwood per ETA extension

• Works with glulam, solid timber, and mass timber

• Allows timber-to-timber, timber-to-steel, and timber-to-concrete connections

• Fire resistance performance when fully concealed (R30 ≥ 20 mm, R60 ≥ 40 mm)

• Disassembly and reassembly possible

• Available in blue galvanized or hot-dip galvanized finish

• Glulam beam hanger connections

• Heavy timber and mass timber structures

• Log construction

• Timber frame buildings

• Exterior structures such as pergolas, gazebos, sunrooms, canopies

• Engineered timber projects requiring concealed structural hardware

Set Includes:

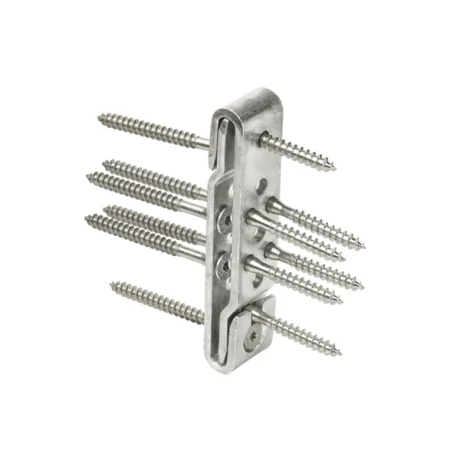

• 2 pcs. GIGANT 180/40 brackets

• 6 pcs. KNAPP SK screws 10 x 80 mm

• 6 pcs. KNAPP SK screws 10 x 120 mm

Load Capacity:

• 29.8 kN* characteristic F2,Rk in the insertion direction
  *Applies only when using original KNAPP SK screws per ETA-10/0189, based on C24 pine.

Material and Installation Requirements:

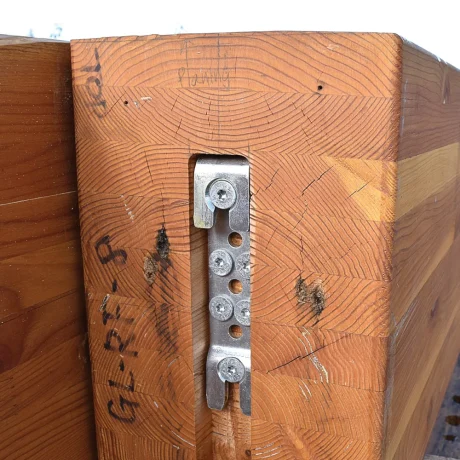

• End grain installation: SK screws 10 x 120 mm

• Side grain installation: SK screws 10 x 80 mm

• Immediately load-bearing once engaged

• Can be installed concealed with a recess or visibly when required

Optional Accessories:

• GIGANT Locking Clip for securing the connector against pull-out forces

• GIGANT Drilling Jig for accurate and repeatable screw positioning

• MULTI F 40 Routing Jig for creating the recessed housing with consistent depth and geometry

1. Create the recessed housing using CNC or the KNAPP MULTI F 40 routing jig.

2. Pre-drill screw positions using CNC or the GIGANT drilling jig.

3. Install both brackets using the prescribed KNAPP SK screws.

4. Slide the beams together until fully engaged.

5. The joint becomes immediately load-bearing upon engagement.
