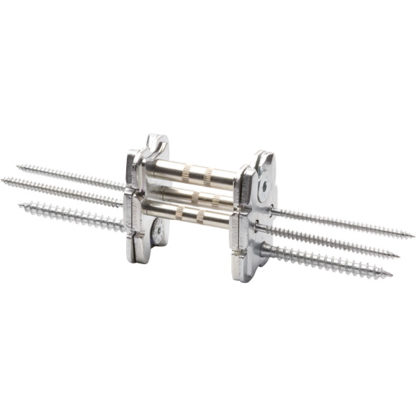

RICON DA 40 x 60 VM48 Beam Hanger

The RICON DA 40 x 60 VM48 Beam Hanger is a compact concealed double connection system designed for joining two beams to a single post. It provides a strong, fully hidden connection ideal for small timber assemblies or installations with limited space.

The VM48 configuration includes 48 mm compound nuts for 50 mm post sections, ensuring a precise and stable connection with minimal installation depth. Despite its size, this system offers dependable load-bearing capacity and fast installation, making it ideal for prefabricated or modular timber construction.

Key Features

• Concealed double connection for beams meeting on a single post

• 60 mm compact plate design for tight structural layouts

• VM48 configuration with 48 mm compound nuts for 50 mm post thickness

• Load capacity up to 26 kN depending on timber type and configuration

• Through-post fastening maintains alignment and prevents screw interference

• Adjustable for small tolerance corrections on site

• Reusable and demountable for modular or prefabricated systems

• Optional corrosion protection for outdoor or humid environments

• Timber-frame and post-and-beam assemblies

• Glulam, LVL, or solid timber connections

• Modular and prefabricated building systems

• Roof, canopy, and pergola assemblies

• Hybrid wood-to-steel or wood-to-concrete joints

• Concealed joinery in structural and architectural timber designs

• Type: RICON DA 40 x 60 VM48 Double Connection

• Load Capacity: Up to 26 kN (based on timber species and configuration)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

• Kit Includes:

  • 4 × RICON DA 40 x 60 plates

  • 4 × SK-screws M5x20

  • 2 × SK-screws M8x25

  • 4 × SK-screws 5×80 mm

  • 2 × SK-screws 8×80 mm

  • 2 × locking brackets

  • 2 × compound nuts M5 8×48 mm

  • 1 × compound nut M8 10×48 mm (for 50 mm post thickness)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwood materials

1. Mill a recess into the end grain of both beams according to the provided template.

2. Mount the connector plates using the supplied SK-screws (5×80 mm, 5×50 mm, and 8×80 mm).

3. Drill through the post and insert the compound nuts (M5 8×48 mm and M8 10×48 mm).

4. Attach the opposite plates using M8x25 SK-screws.

5. Align and slide both beams together until the plates interlock.

6. Secure the connection with the included locking brackets.

7. Verify alignment and tighten all fasteners before completing the assembly.
