RICON EA 40 x 60 Beam Hanger Set

The RICON EA 40 x 60 Beam Hanger Set is a concealed single connection system designed for compact timber assemblies where space and beam dimensions are limited. Despite its small size, it provides a strong, precise, and completely hidden joint suitable for both structural and architectural applications.

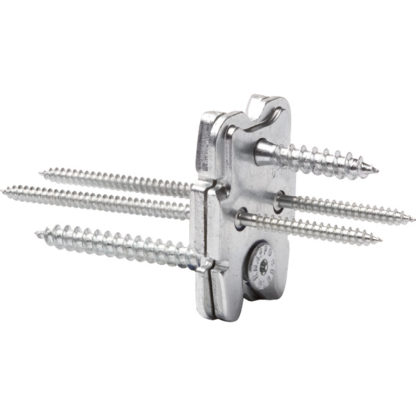

Each connector includes two identical steel plates that interlock in a dovetail-like fashion. The 60 mm plates are ideal for small timber members such as mullions, rafters, or secondary framing elements. Installation is quick, repeatable, and can be completed with standard self-tapping screws. The connection can be assembled or disassembled multiple times, making it suitable for prefabricated or modular systems.

Key Features

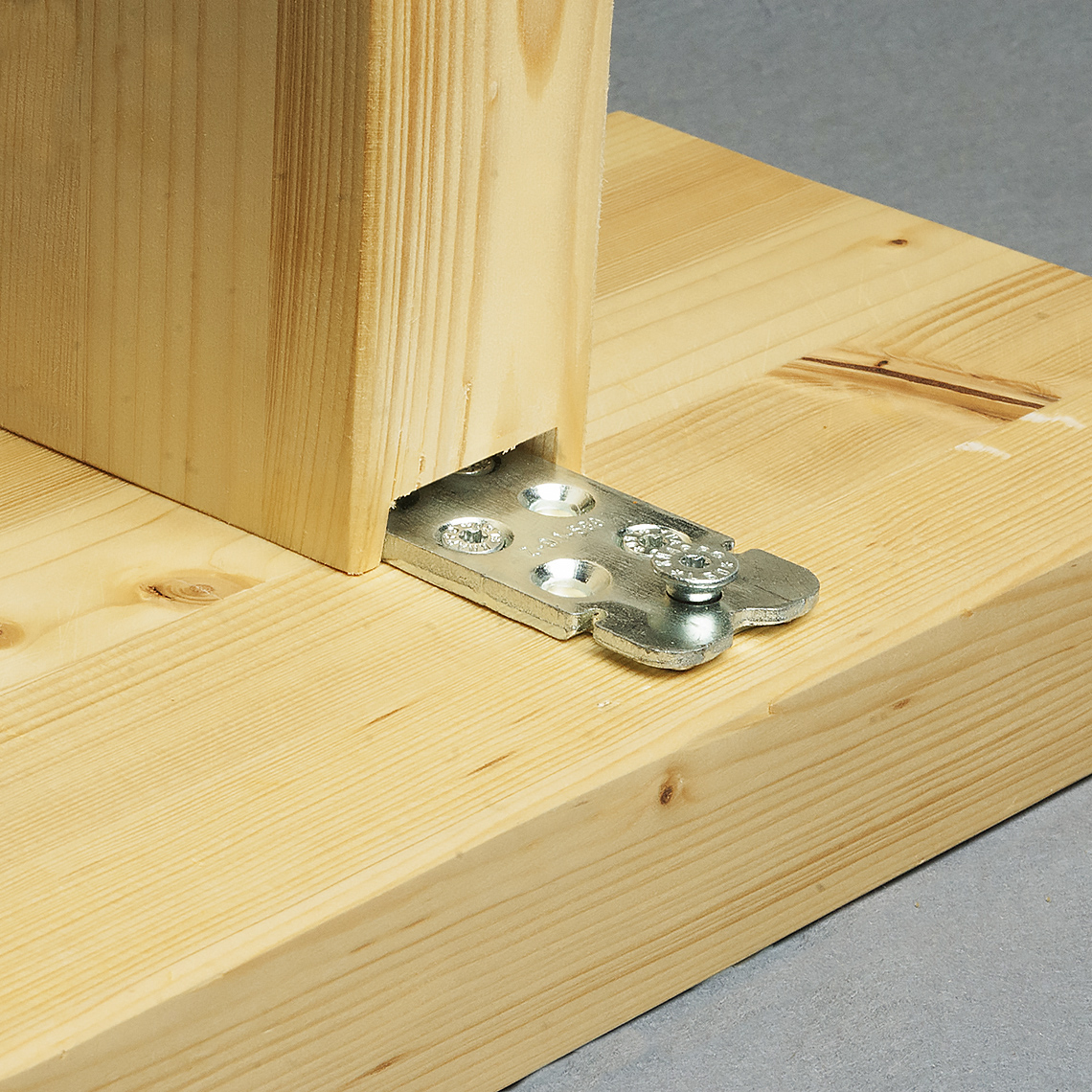

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• Compact 60 mm plates for narrow timber members and tight spaces

• Load capacity up to 6.3 kN (insertion direction, per ETA 10/0189 with original KNAPP CS-screws)

• Self-aligning dovetail mechanism ensures a tight, gap-free fit

• Adjustable to correct manufacturing or installation tolerances

• Compatible with timber, steel, and concrete connections

• Reusable and removable for modular construction

• Optional corrosion-resistant coatings for outdoor or humid environments

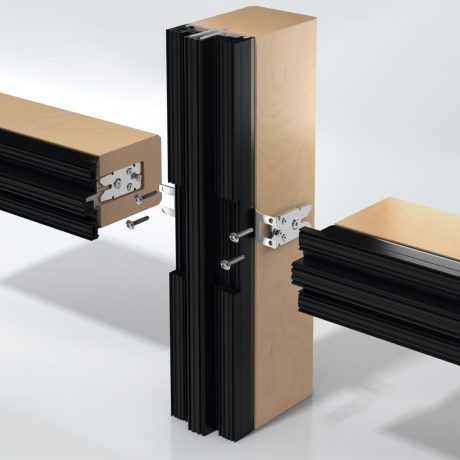

• Compatible with aluminum base profiles from RP, Schüco, MBJ, Guttmann, RAICO, and Stabalux

• Timber-frame and post-and-beam construction

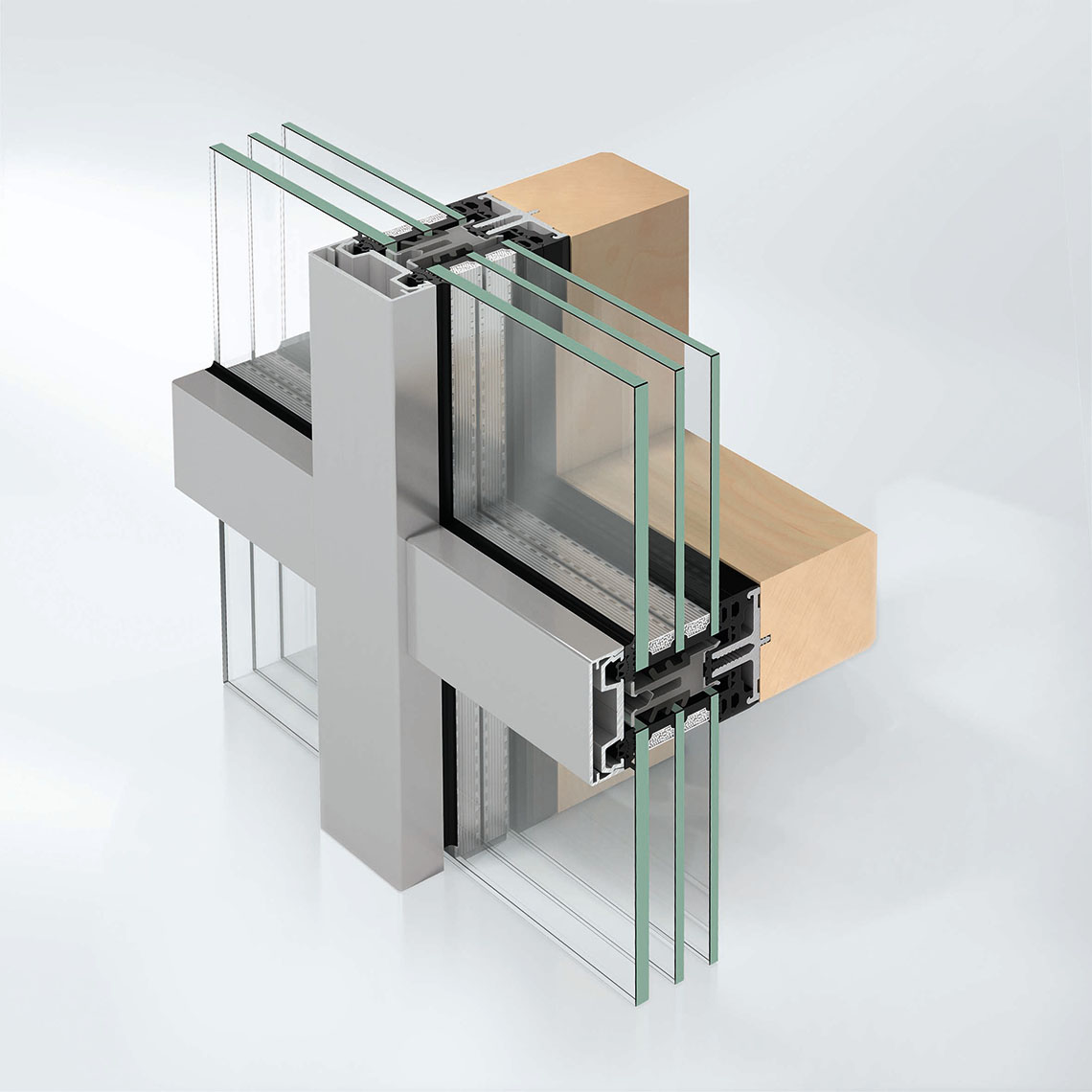

• Curtain wall and façade assemblies

• Glulam, LVL, or solid wood beam joints

• Secondary framing, mullions, or lightweight connections

• Modular and prefabricated building systems

• Hybrid wood-to-steel or wood-to-concrete assemblies

• Type: RICON EA 40 × 60 Single Connection

• Load Capacity (F₂,Rk): 6.3 kN (per ETA 10/0189 with KNAPP CS-screws)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

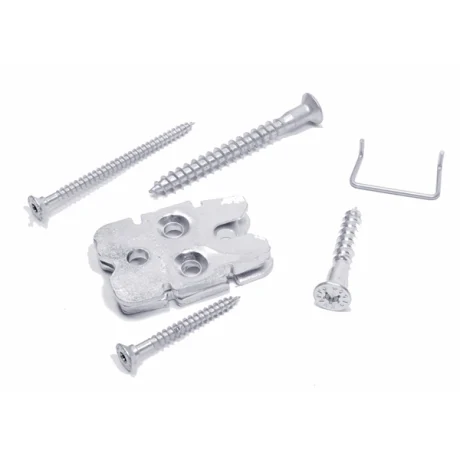

• Kit Includes:

  • 2 × RICON EA 40 × 60 plates

  • 2 × SK-screws 5×50 mm

  • 2 × SK-screws 5×80 mm

  • 1 × SK-screw 8×50 mm

  • 1 × SK-screw 8×80 mm

  • 1 × locking bracket

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for hardwoods (e.g., oak, larch, beech)

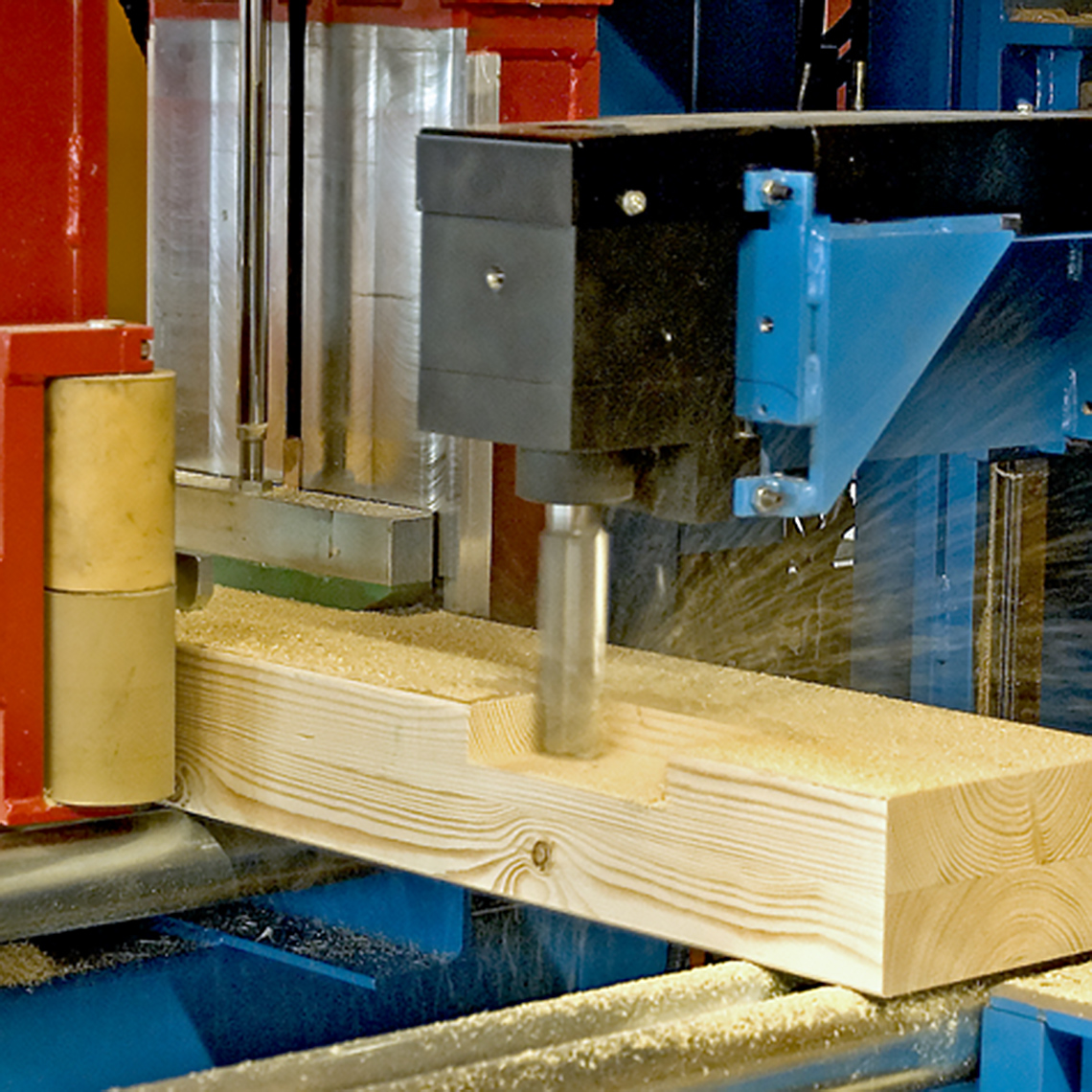

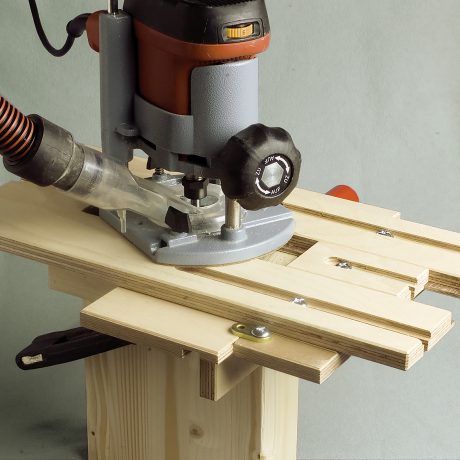

• Mill a recess into the end grain of the beam using the supplied template.

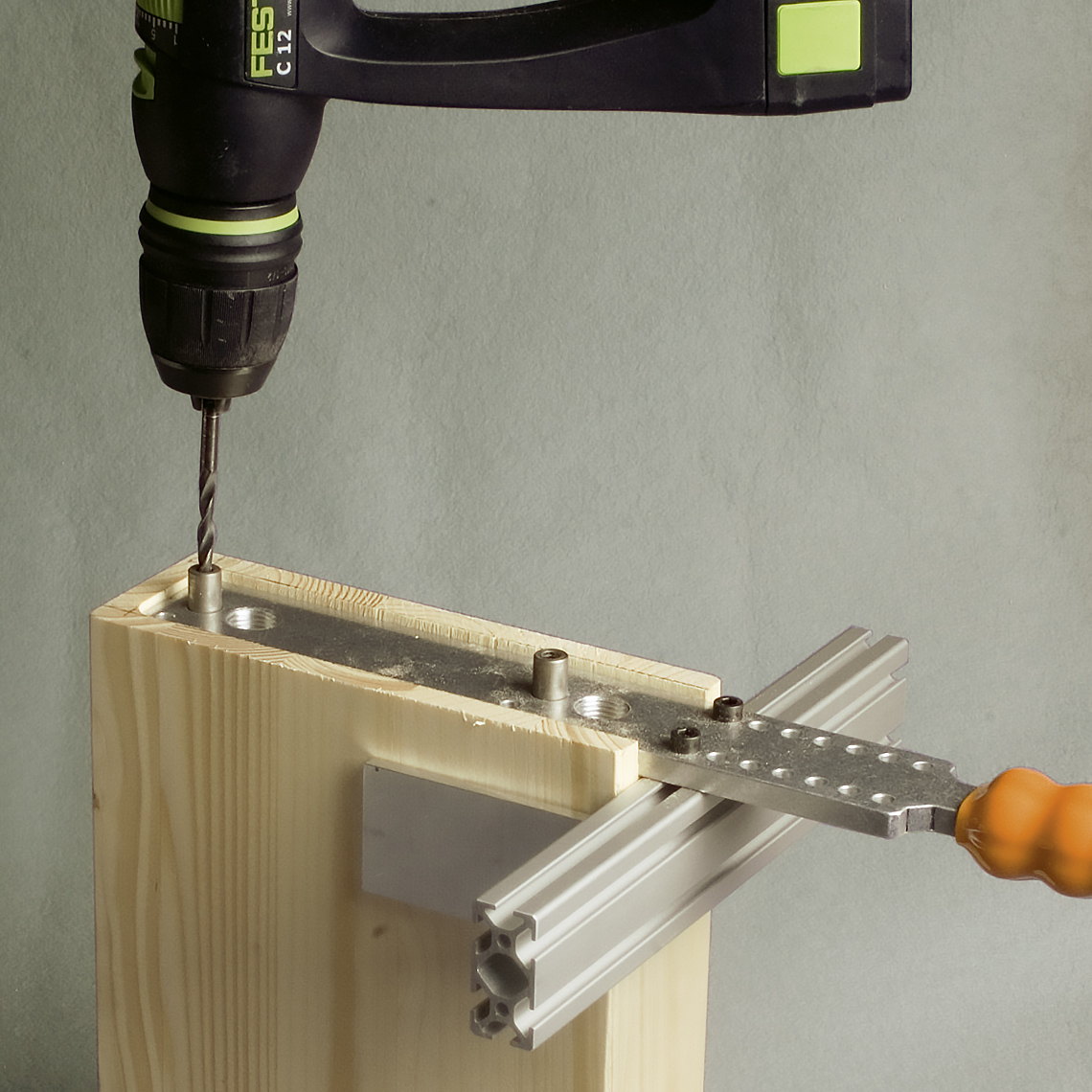

• Mount one connector plate using SK-screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or support member.

• Align and slide the plates together until interlocked.

• Secure the joint using the supplied locking bracket.

• Check alignment and tighten all screws to specification.
